Platform Lifts

Discovery

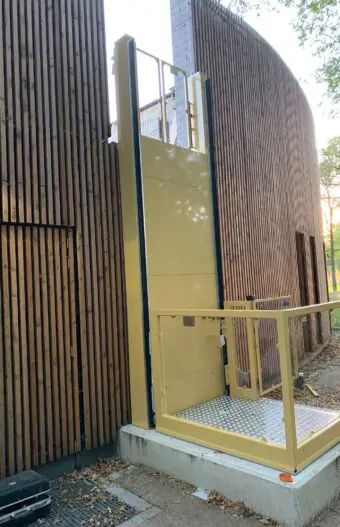

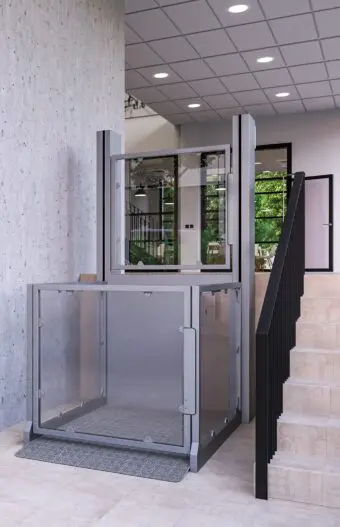

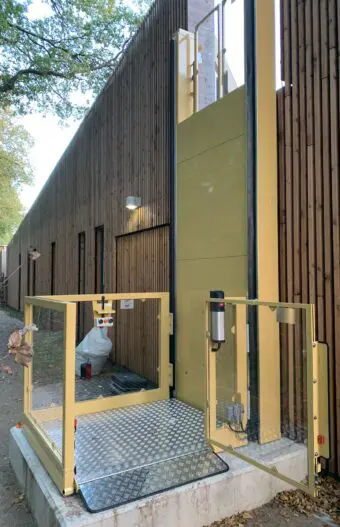

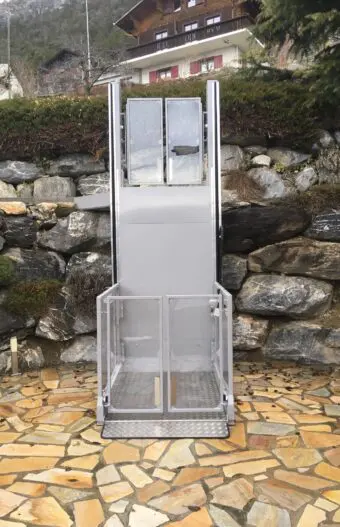

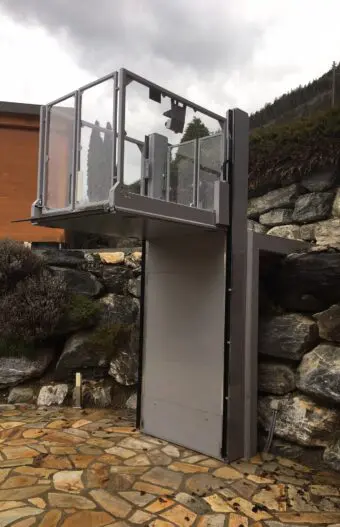

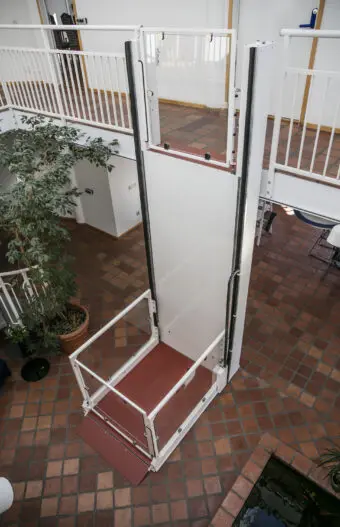

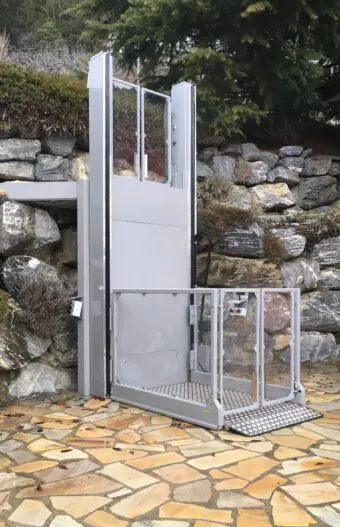

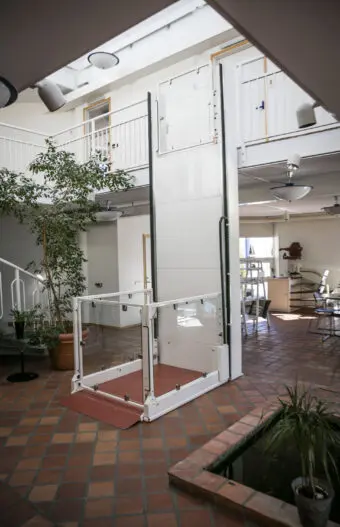

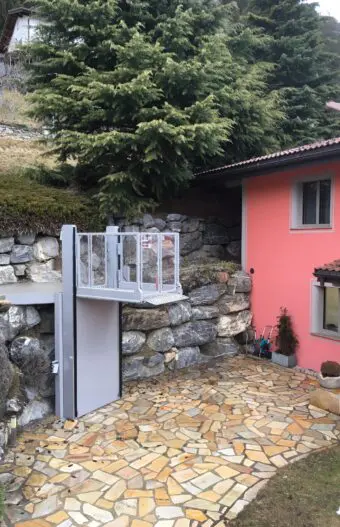

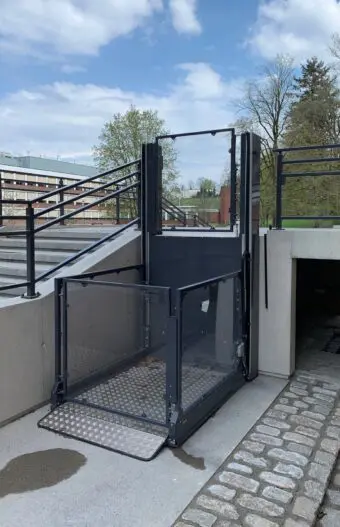

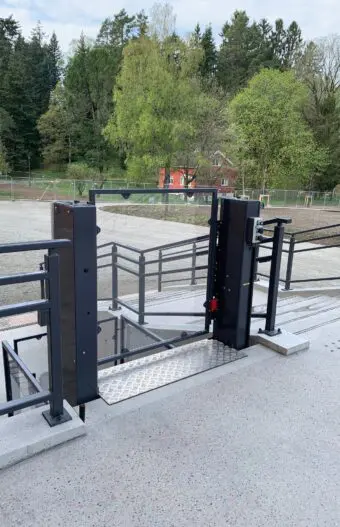

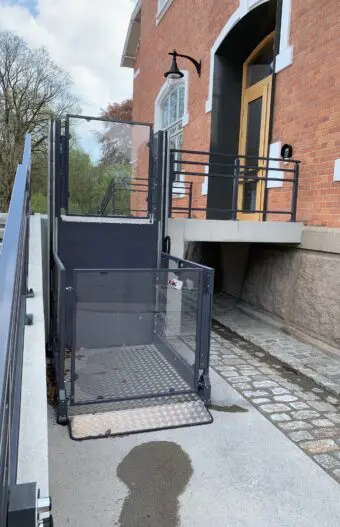

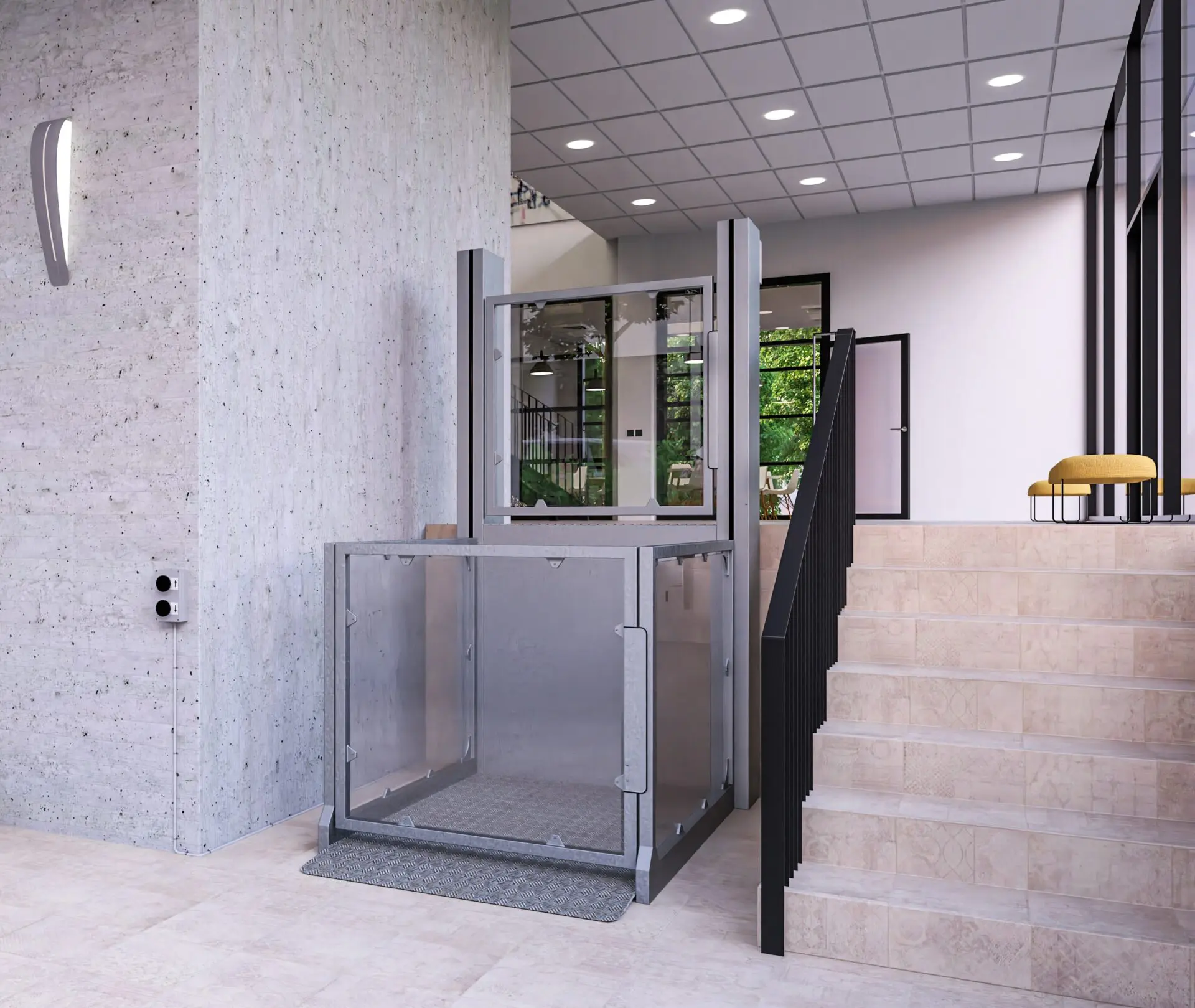

Whether the steps to your home are becoming difficult to manage or you’re in need of wheelchair lifts, the Discovery is a perfect alternative to installing a long and expensive ramp. Designed to be installed against a landing or verandah externally, the Discovery is also suitable for internal installation to help negotiate split-level homes.

About Main Image
About Main Image
About Main Image

OVERVIEW


Maximum Travel:
2m
Maximum Travel:
2m
Maximum Travel:
2m
Maximum Travel:
2m
Weight Capacity:
400kg
Weight Capacity:
400kg
Weight Capacity:
400kg
Weight Capacity:
400kg
Rated Speed:
0.08m/s
Rated Speed:
0.08m/s
Rated Speed:
0.08m/s
Rated Speed:
0.08m/s
Compliance:
AS1735.15/EN 81-41, NCC & DDA requirements
Compliance:
AS1735.15/EN 81-41, NCC & DDA requirements
Compliance:
AS1735.15/EN 81-41, NCC & DDA requirements
Compliance:
AS1735.15/EN 81-41, NCC & DDA requirements
Control:
Constant Pressure Operation
Control:
Constant Pressure Operation
Control:
Constant Pressure Operation
Control:
Constant Pressure Operation
Installation:
Internal and External
Installation:
Internal and External
Installation:
Internal and External
Installation:
Internal and External
Power Supply:
230V Single Phase
Power Supply:
230V Single Phase
Power Supply:
230V Single Phase
Power Supply:
230V Single Phase
Door Configuration:
Left or right swing, through car or adjacent entry
Door Configuration:
Left or right swing, through car or adjacent entry
Door Configuration:
Left or right swing, through car or adjacent entry
Door Configuration:
Left or right swing, through car or adjacent entry
Pit Depth:
50mm for flush entry, or ramp provided
Pit Depth:
50mm for flush entry, or ramp provided
Pit Depth:
50mm for flush entry, or ramp provided
Pit Depth:
50mm for flush entry, or ramp provided

SAFETY FEATURES

SAFETY FEATURES

The Discovery VPL is engineered in Sweden with an advanced, multi-layered safety suite designed to protect passengers in every situation. Key safety features include:

Manual Lowering – Allows the lift to be safely lowered to the nearest landing during a power loss or system fault.

Safety Underpan – Stops the lift immediately if an obstruction is detected beneath the platform.

Emergency Backup Lowering System (Optional) – Automatically lowers the lift to a safe level during a power outage.

WARRANTY AND MAINTENANCE

WARRANTY AND MAINTENANCE

3-year conditional warranty covering both labour and parts

Servicing required every 12 months to maintain warranty and optimal performance

All replacement parts are stocked locally for fast turnaround and minimal downtime
