Residential Lifts

Gemini

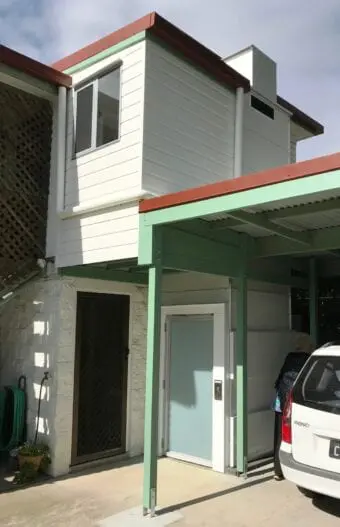

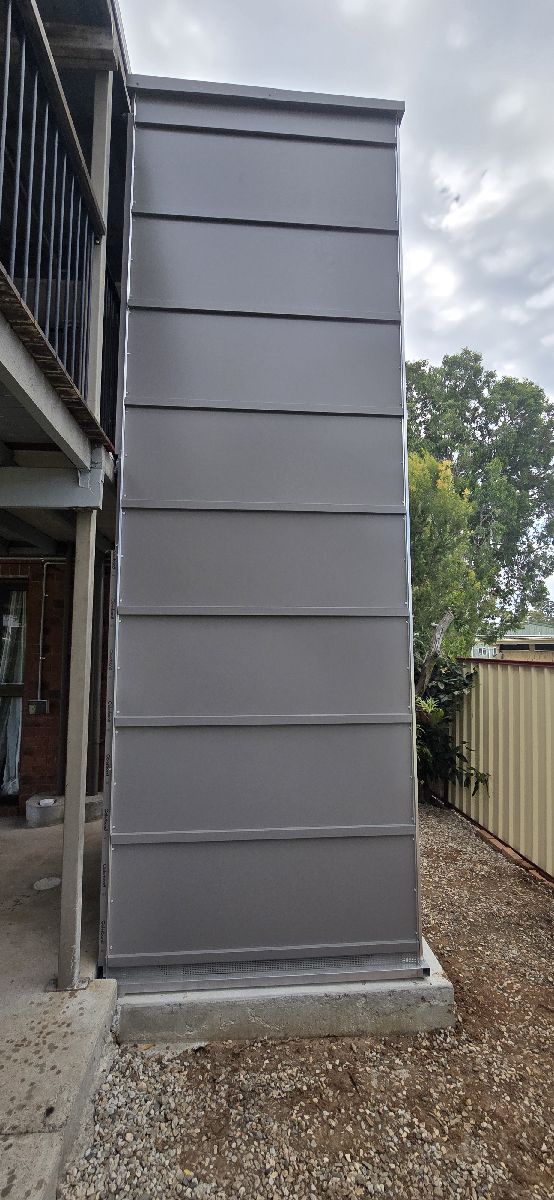

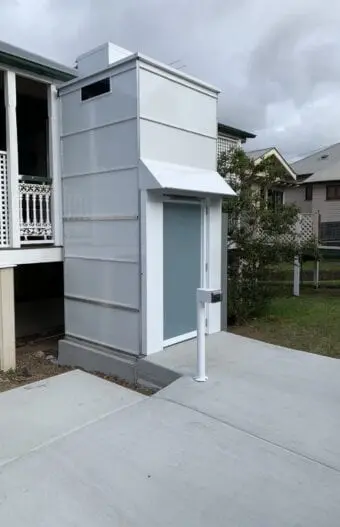

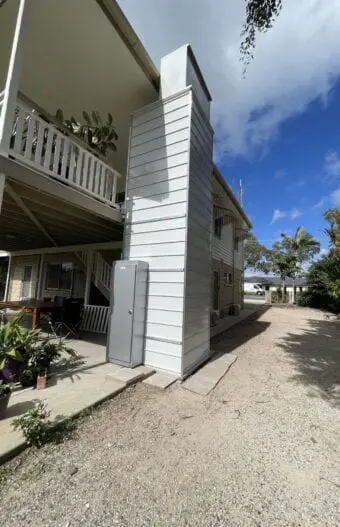

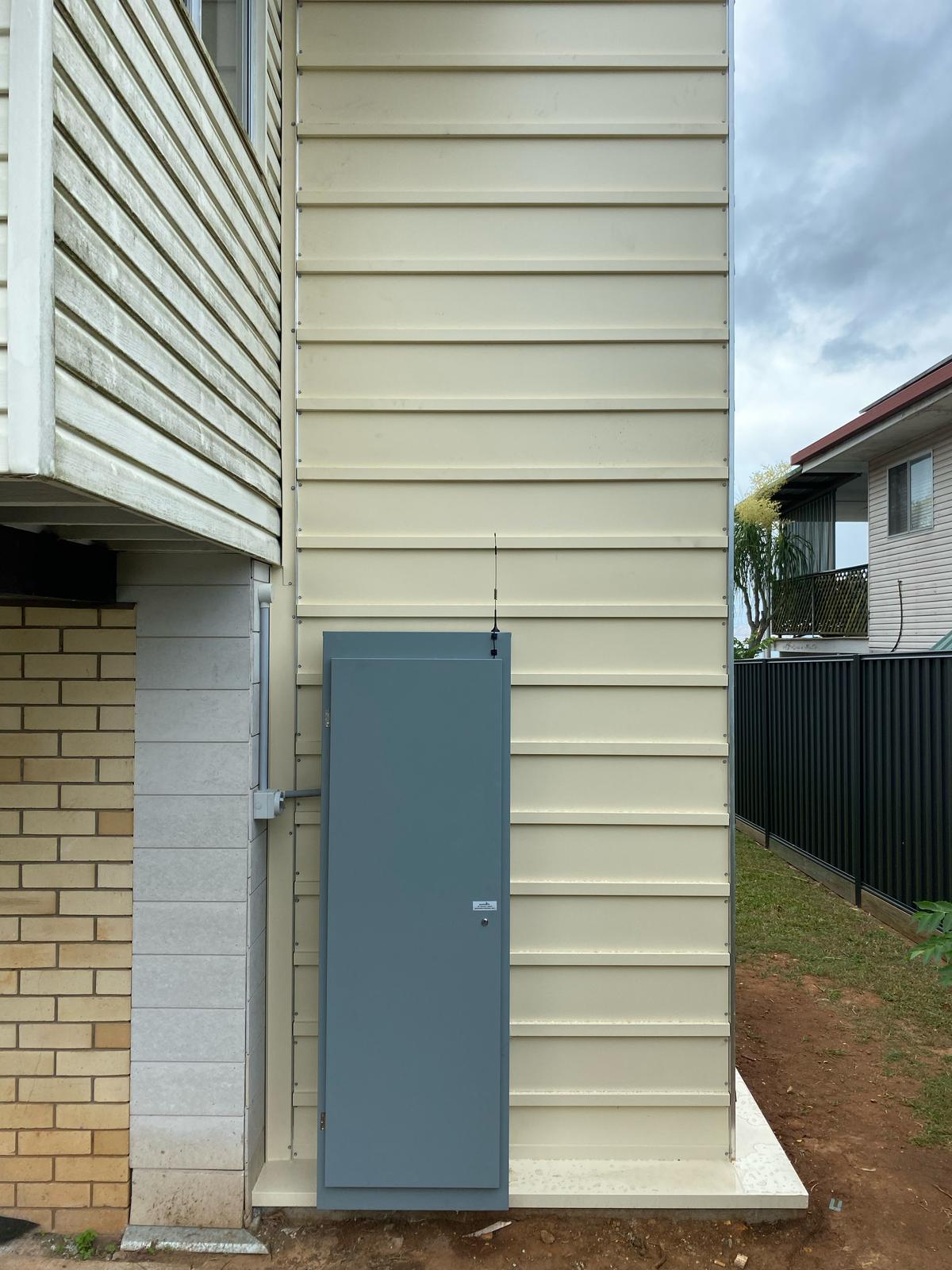

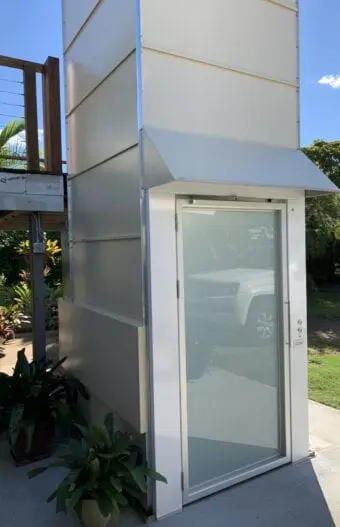

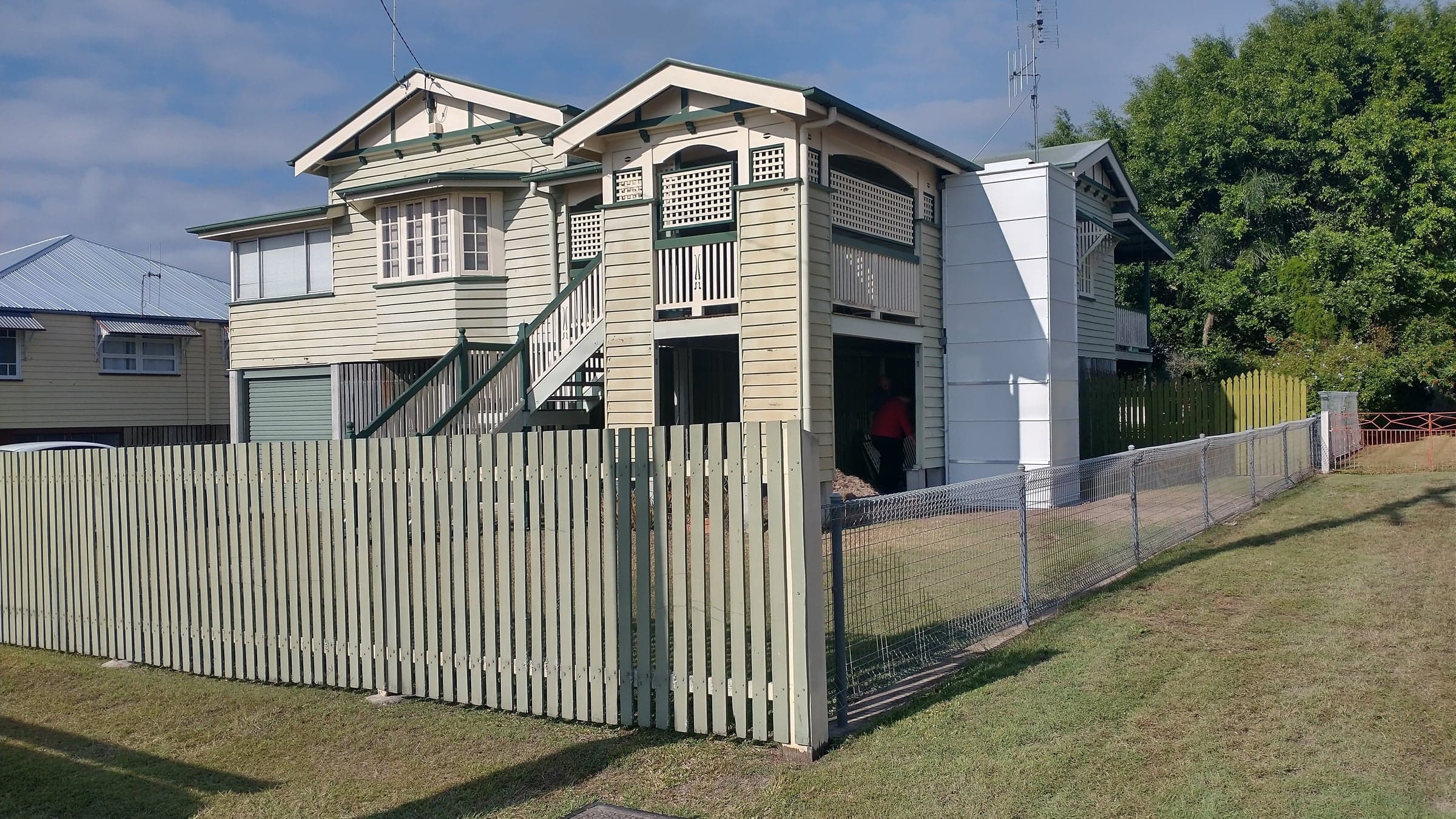

The Gemini by Aussie Lifts is a compact and reliable home access lift, combining the proven strength of the original Gemini structure with our durable oil-hydraulic system. Offering a 350kg lifting capacity, flexible sizing, and smooth, quiet operation, it’s designed for easy servicing and minimal structural modification. With essential safety features and Australian-made quality, the Gemini provides a practical and cost-effective solution for comfortable movement between two levels.

About Main Image
About Main Image
About Main Image
Maximum Travel:
4m
Maximum Travel:
4m
Maximum Travel:
4m
Maximum Travel:
4m
Weight Capacity:
350kg
Weight Capacity:
350kg
Weight Capacity:
350kg
Weight Capacity:
350kg
Rated Speed:
0.185m/s
Rated Speed:
0.185m/s
Rated Speed:
0.185m/s
Rated Speed:
0.185m/s
Compliance:
AS1735, NCC & DDA requirements
Compliance:
AS1735, NCC & DDA requirements
Compliance:
AS1735, NCC & DDA requirements
Compliance:
AS1735, NCC & DDA requirements
Control:
Fully Automatic Operation
Control:
Fully Automatic Operation
Control:
Fully Automatic Operation
Control:
Fully Automatic Operation
Installation:
External
Installation:
External
Installation:
External
Installation:
External
Power Supply:
230V Single Phase (optional 400V Three Phase)
Power Supply:
230V Single Phase (optional 400V Three Phase)
Power Supply:
230V Single Phase (optional 400V Three Phase)
Power Supply:
230V Single Phase (optional 400V Three Phase)
Door Configuration:
Left or right swing configuration, supporting up to two doors per landing
Door Configuration:
Left or right swing configuration, supporting up to two doors per landing
Door Configuration:
Left or right swing configuration, supporting up to two doors per landing
Door Configuration:
Left or right swing configuration, supporting up to two doors per landing
Pit Depth:
100mm
Pit Depth:
100mm
Pit Depth:
100mm
Pit Depth:
100mm

CUSTOMISED FOR YOUR SPACE

CUSTOMISED FOR YOUR HOME

Gemini

has an extensive range of available finishes


Colour Options

We have 100s of colour options available, including mirrors, LED lighting and much more. Ask our team or visit one of our showrooms to find out more.

Colour Options

We have 100s of colour options available, including mirrors, LED lighting and much more. Ask our team or visit one of our showrooms to find out more.

Colour Options

We have 100s of colour options available, including mirrors, LED lighting and much more. Ask our team or visit one of our showrooms to find out more.

Colour Options

We have 100s of colour options available, including mirrors, LED lighting and much more. Ask our team or visit one of our showrooms to find out more.

Flooring

We provide premium carpet or laminate flooring options, or we can provide the Phoenix without flooring, to be finished on site by the builder and matched to the landing

Flooring

We provide premium carpet or laminate flooring options, or we can provide the Phoenix without flooring, to be finished on site by the builder and matched to the landing

Flooring

We provide premium carpet or laminate flooring options, or we can provide the Phoenix without flooring, to be finished on site by the builder and matched to the landing

Flooring

We provide premium carpet or laminate flooring options, or we can provide the Phoenix without flooring, to be finished on site by the builder and matched to the landing

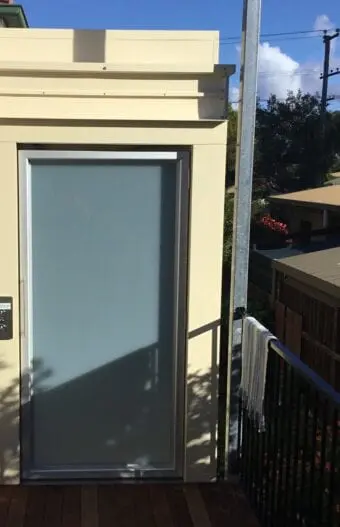

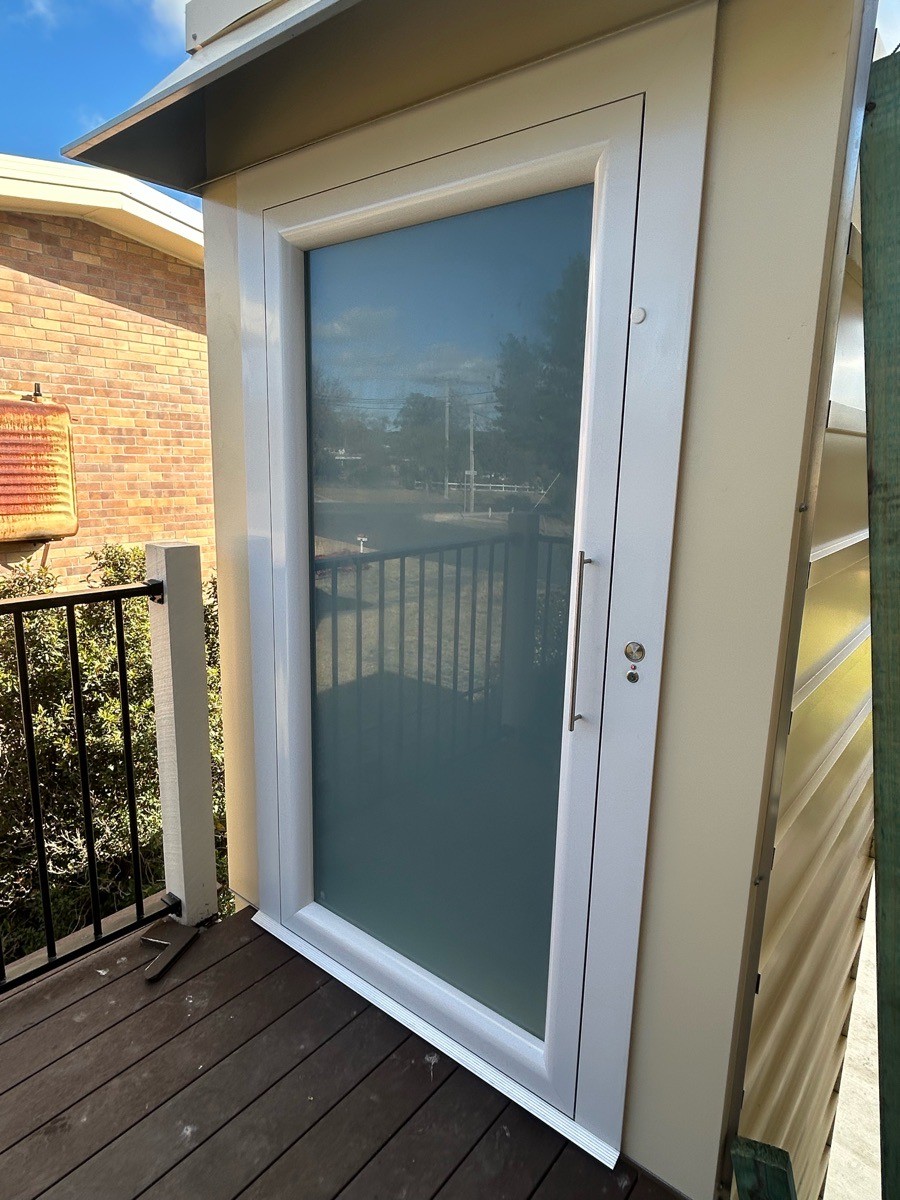

Doors

Manual or power operated glass panel swing doors with a white or black finish

Doors

Manual or power operated glass panel swing doors with a white or black finish

Doors

Manual or power operated glass panel swing doors with a white or black finish

Doors

Manual or power operated glass panel swing doors with a white or black finish

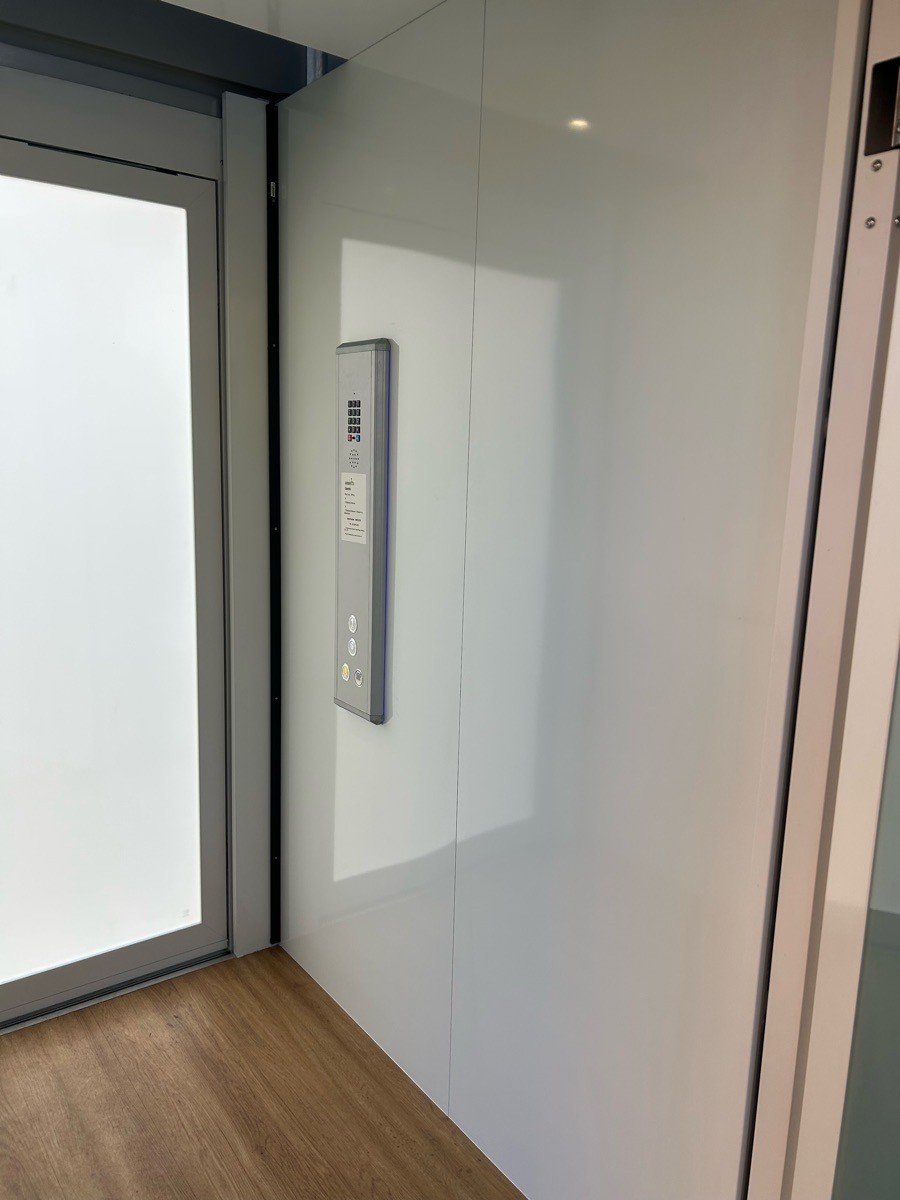

Control Panel

Pushbutton control panel available in white, silver or black

Control Panel

Pushbutton control panel available in white, silver or black

Control Panel

Pushbutton control panel available in white, silver or black

Control Panel

Pushbutton control panel available in white, silver or black

Handrails

Available in either returned or shaft and post styles, finished as brushed stainless steel or powdercoated

Handrails

Available in either returned or shaft and post styles, finished as brushed stainless steel or powdercoated

Handrails

Available in either returned or shaft and post styles, finished as brushed stainless steel or powdercoated

Handrails

Available in either returned or shaft and post styles, finished as brushed stainless steel or powdercoated

SAFETY FEATURES

SAFETY FEATURES

Strong Hydraulic Drive System — Uses dual oil-hydraulic, chain-over cylinders for smooth, stable, and reliable lifting — reducing jolt or sudden movements

Emergency Telephone & Alarm — The lift is fitted with an in-car emergency phone and alarm to allow immediate communication if assistance is required

Manual Lowering Valve — For added safety and peace of mind, the lift includes a manual lowering option to bring the car to a safe level if needed

Automatic Sliding Doors as Standard — Sliding doors improve safety and accessibility — reducing trip hazards and making entry/exit easier

Emergency Battery Backup Lowering & Lighting — In case of a power failure, the system includes an emergency backup lowering system so the lift can be safely lowered, plus backup lighting for visibility

WARRANTY AND MAINTENANCE

WARRANTY AND MAINTENANCE

10 Year structural warranty covering the strength and integrity of the lift structure

3 Year Conditional Warranty covering both labour and parts

Servicing required every 12 months to maintain warranty and optimal performance

All replacement parts are stocked locally for fast turnaround and minimal downtime
