Swift Pro. The premium home lift with a 50 mm pit.
The Swift Pro is our top residential lift: a touch display, a choice of ArtWall panels and six cabin sizes, in a shaft slim enough to drop into a house that was never designed for a lift. Supplied and installed from 8 weeks, certified to AS1735.15, and serviced by our own team.
From $51,000 installed, plus GST if applicable.
The final price depends very much on your configuration. Lifts supplied for a qualifying medical need can be GST-free.
Installed covers the lift and its installation, not additional building works or site preparation. We can suggest builders we have worked with, or work alongside the builder you have chosen.
Fits a 50mm pit, or no pit at all: it can sit directly on the slab with a small ramp. That keeps a retrofit cheap, because there is no excavation.
- Maximum Travel:
- 12m
- Stops:
- 2 to 6 levels
- Weight Capacity:
- 250kg (2 persons) to 400kg (5 persons)
- Rated Speed:
- 0.3m/s
- Cabin Sizes:
- 6 sizes, from 830 x 600mm to 1400 x 1100mm
- Shaft Opening:
- 940 x 1025mm to 1510 x 1525mm
- Headroom:
- 2350mm to 3500mm
- Compliance:
- AS1735.15/EN81:41
- Control:
- Automatic Control
- Control System:
- Thor Engineering
- Drive:
- Screw and Nut EcoDrive with Dynamic Charge
- Installation:
- Internal
- Power Supply:
- 230v Single Phase
- Door Configuration:
- Automatic Bi-fold
- Pit Depth:
- 50mm, or none with a ramp
Lead time and local support
From 8 weeks, supplied and installed.
Quoted from your plans, built to your configuration, and installed by our own team.
Spare parts held in Australia.
We stock a wide range of spare parts in Brisbane, Sydney, Melbourne and South Australia, so a service call is not waiting on an order.
One team, from quote to service.
The people who quote your lift are the people who install it, and who look after it for the life of the lift.
Description
What the Swift Pro is like to own
The Swift Pro is the lift to specify when the finish should be part of the room rather than something to hide. It is designed and engineered in Sweden, then supplied, installed and certified to AS1735.15 by our own crews, and serviced by the same team afterwards, which is the part that matters once the builders have packed up. It runs on ordinary 230v single phase power, so there is no three phase upgrade to organise. It needs a 50mm pit or none at all, sitting on the slab behind a small ramp, so a retrofit does not begin with an excavator. Replacement parts are held in Australia, and the service line is the number you rang to buy it.
Sizes and openings
Six platform sizes, from a two person car that fits where a cupboard used to be, up to a wheelchair sized car. The plans below show the shaft, the car floor, the door swing and the hole you need through the floor. Send us your drawings and we will tell you which one fits.

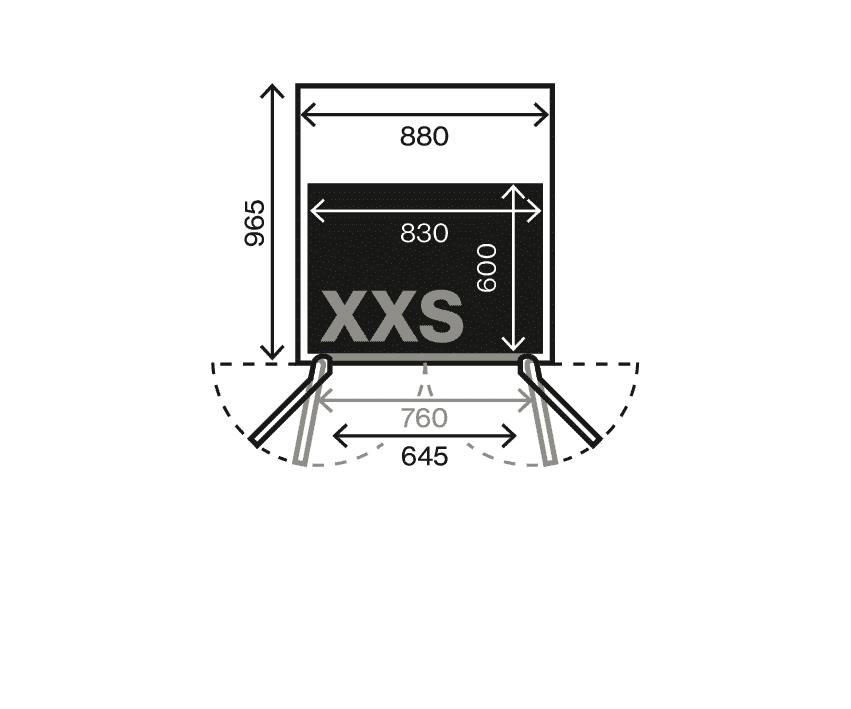

Size XXS
- Car floor
- 830 x 600 mm
- Rated load
- 250 kg, 2 persons
- Hole through floor
- 940 x 1025 mm

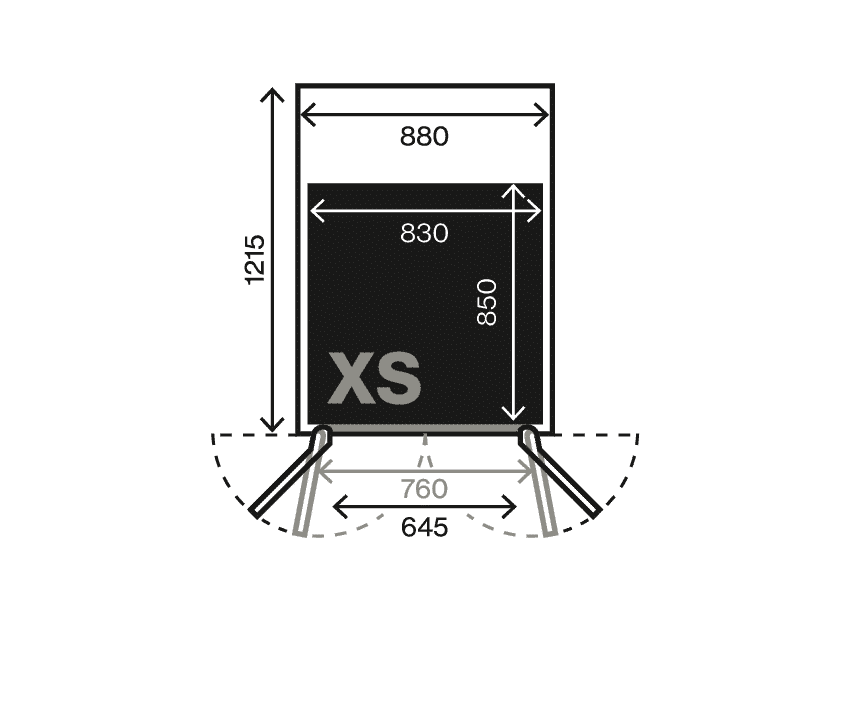

Size XS
- Car floor
- 830 x 850 mm
- Rated load
- 250 kg, 3 persons
- Hole through floor
- 940 x 1275 mm

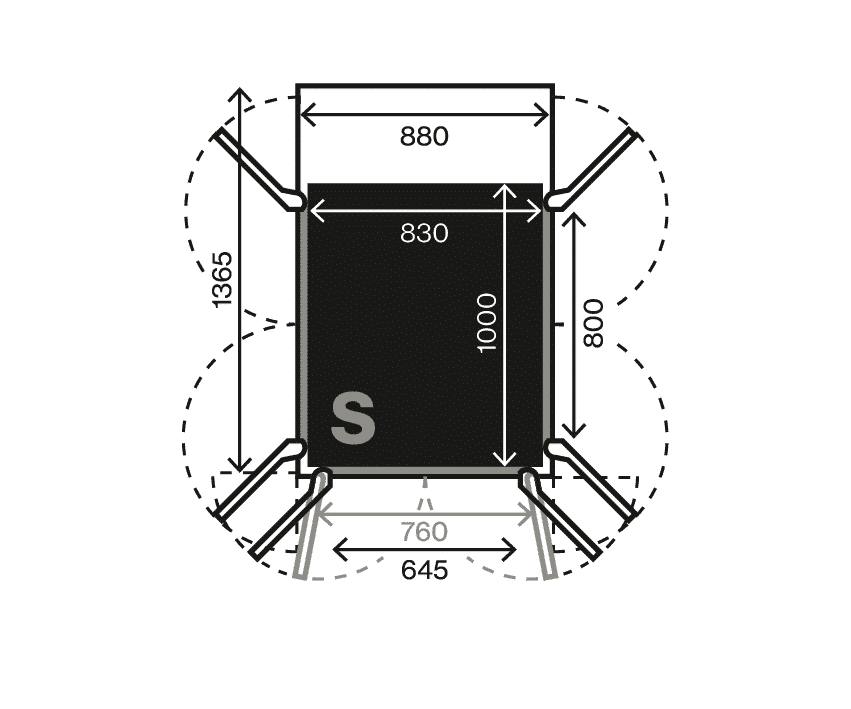

Size S
- Car floor
- 830 x 1000 mm
- Rated load
- 250 kg, 3 persons
- Hole through floor
- 940 x 1425 mm

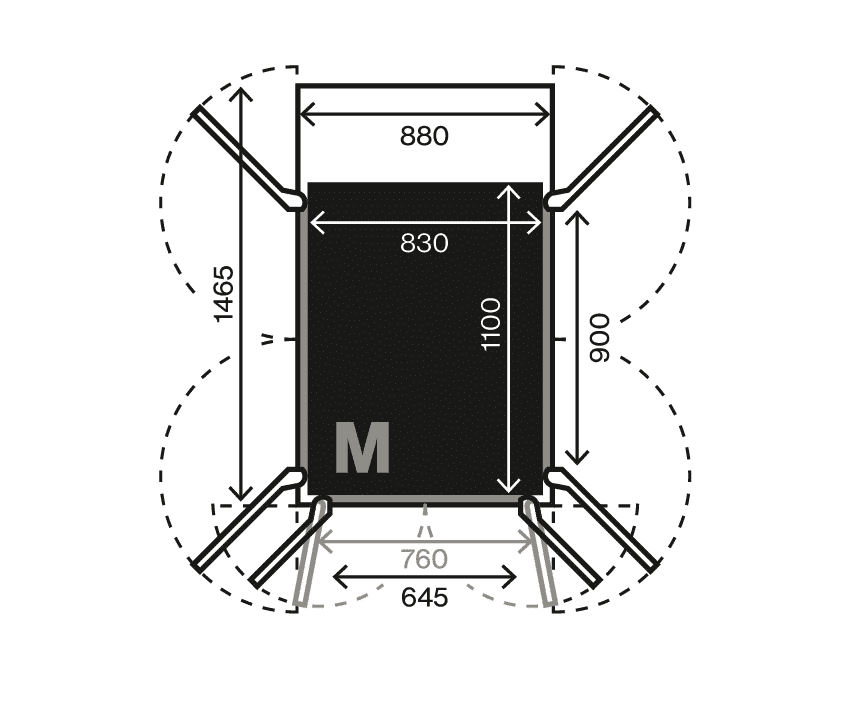

Size M
- Car floor
- 830 x 1100 mm
- Rated load
- 250 kg, 3 persons
- Hole through floor
- 940 x 1525 mm

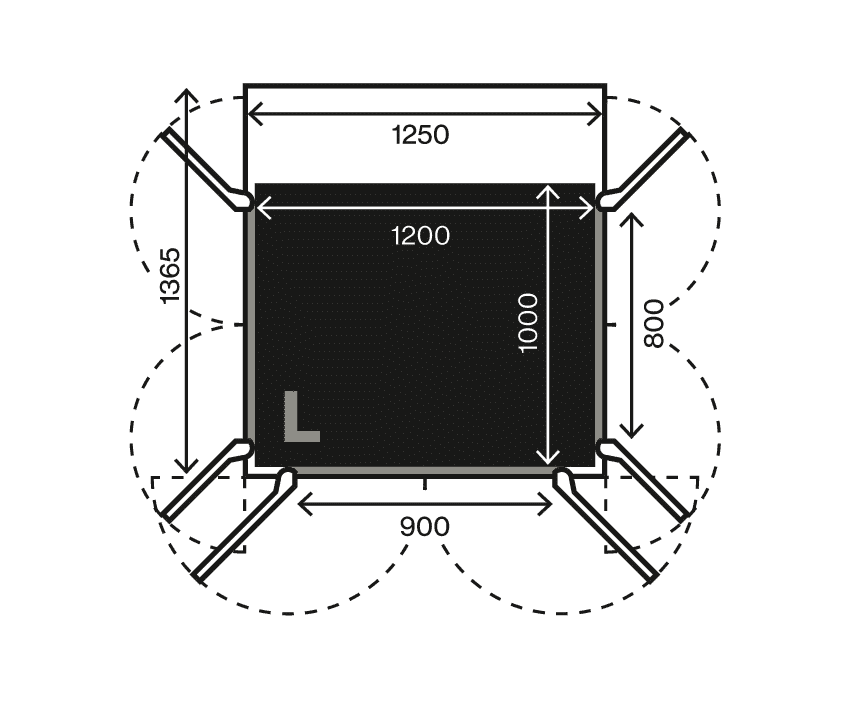

Size L
- Car floor
- 1200 x 1000 mm
- Rated load
- 400 kg, 5 persons
- Hole through floor
- 1310 x 1425 mm

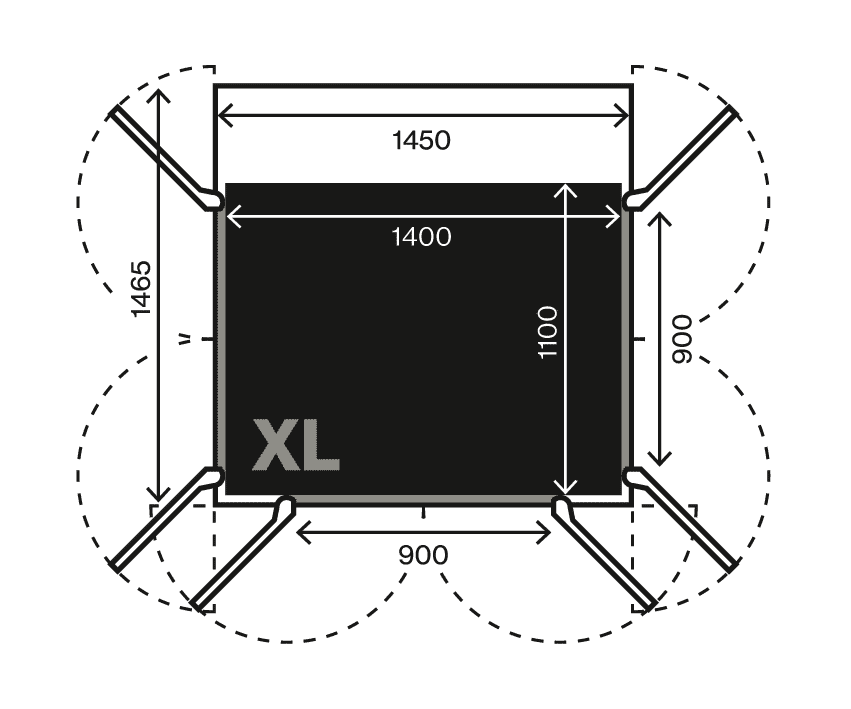

Size XL
- Car floor
- 1400 x 1100 mm
- Rated load
- 400 kg, 5 persons
- Hole through floor
- 1510 x 1525 mm
Shaft colours
Five powdercoat colours for the shaft, each to a RAL reference so your architect or builder can match it to the rest of the house. Bring the RAL number to us and we will quote it.

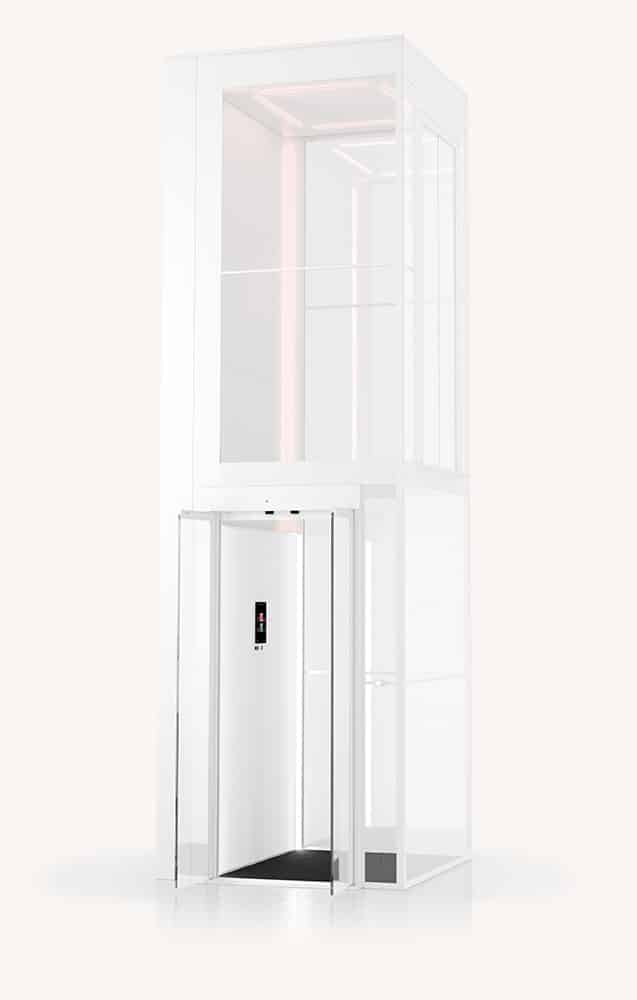

Traffic White
RAL 9016

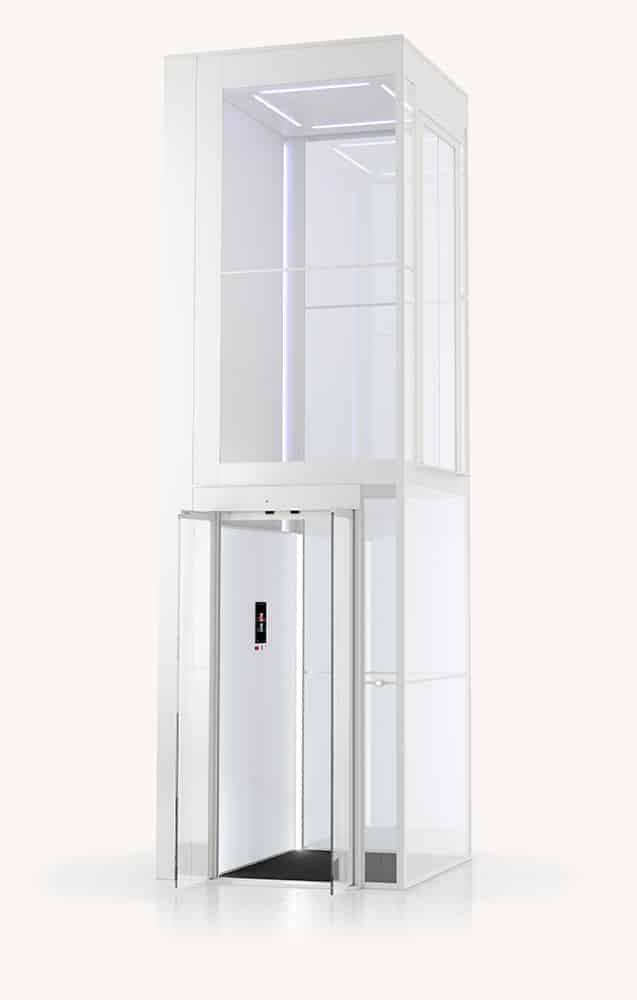

Grey White
RAL 9002

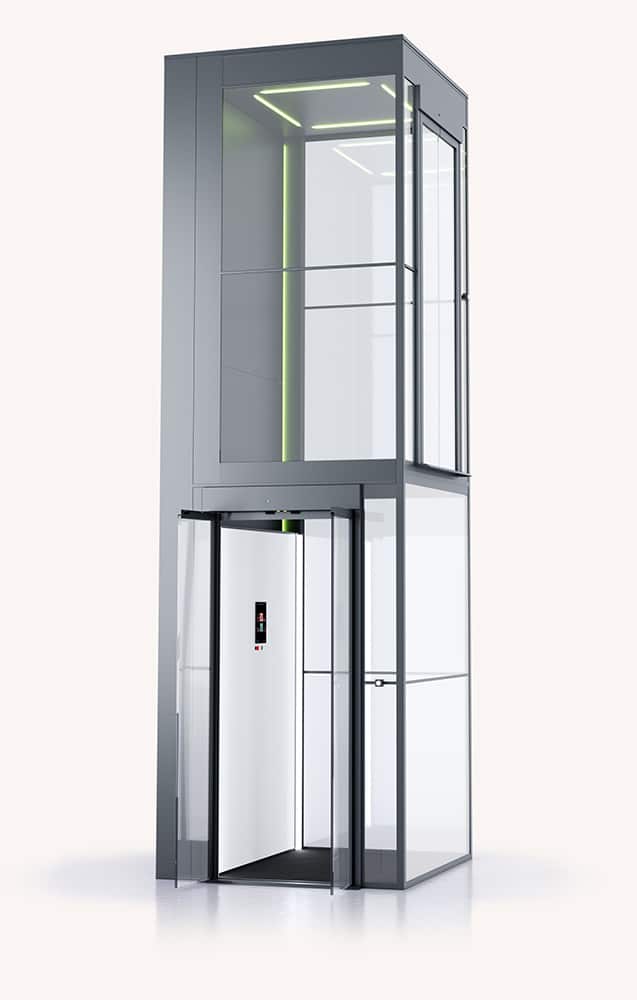

Anthracite Grey
RAL 7016

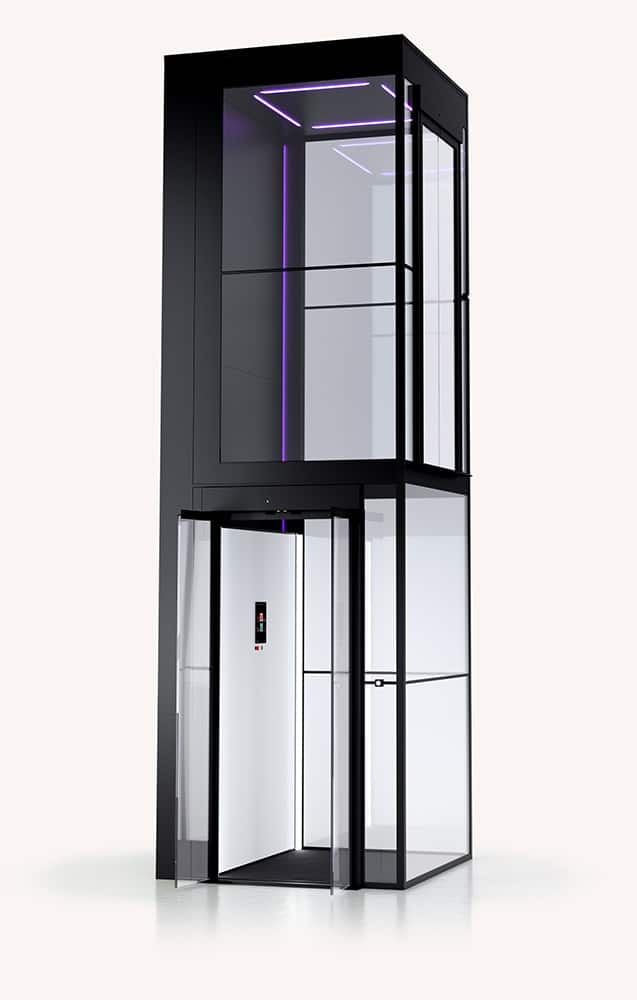

Jet Black
RAL 9005

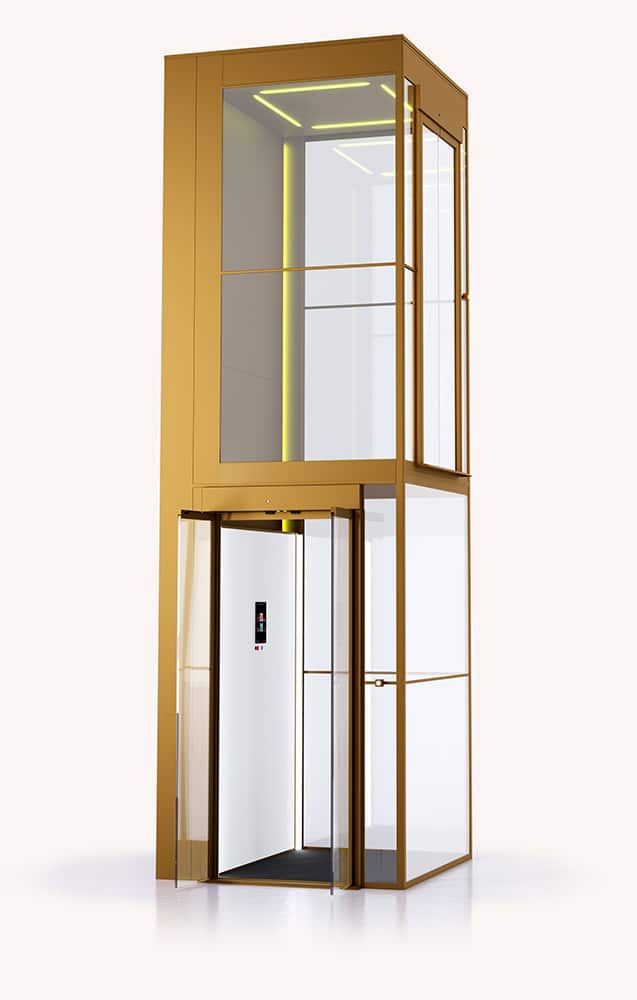

Gold
RAL 1036
Select design combinations
Every ArtWall, colour and carpet Swift makes for the Pro, in every combination. Change any of the three and the cabin updates. ArtWalls and carpets can be swapped later, so the lift can change with the room.

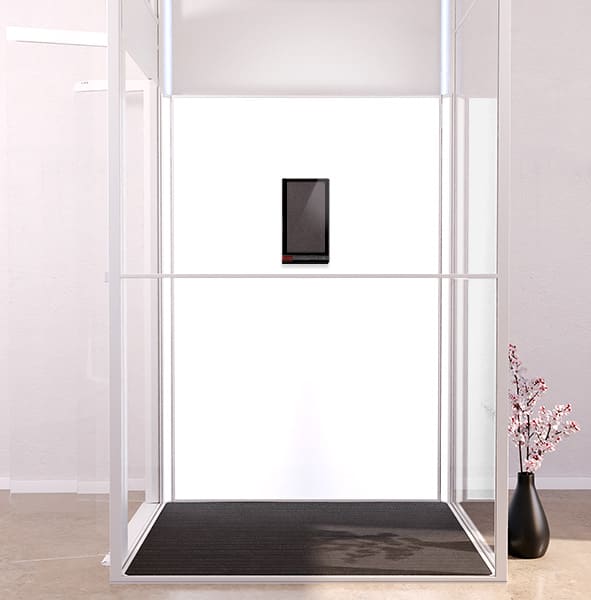

ArtWall
Electric Opal
Shaft colour
Traffic White (RAL 9016)
Carpet
Stitch Black
Electric Opal
The ArtWall Electric Opal adds extra brightness to your home in a soft white tone. Simple and elegant, comes with several different visuals in the touch display inspired by the vibrant electrical force running our SWIFT lift.
One PNG with both views, the option names and the RAL number, ready to send to your architect or builder.
Renders are Swift’s own. Screen colours are a guide, not a match: the RAL number beside each shaft colour is the thing that actually specifies it, so bring that to your architect or builder.

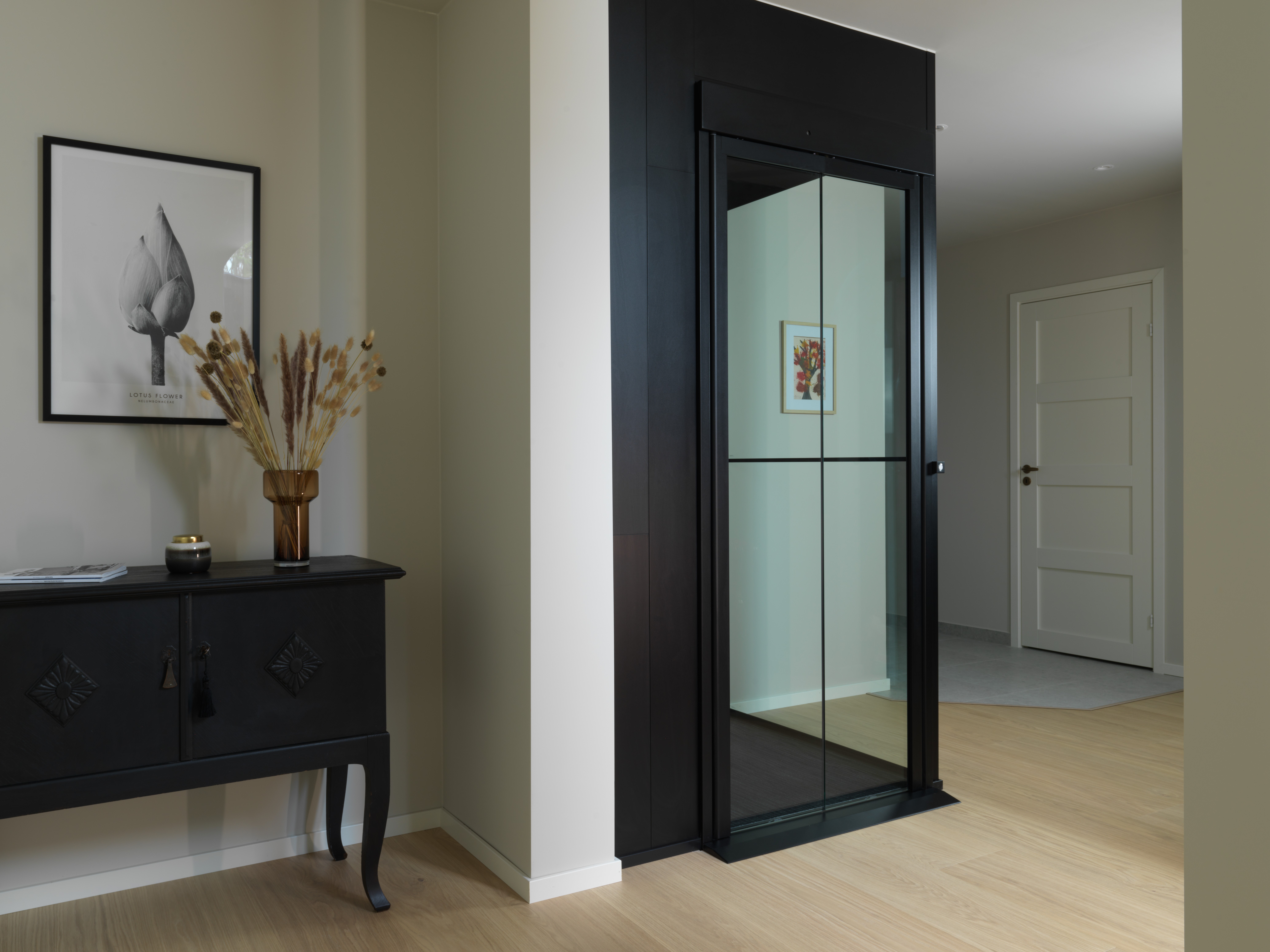

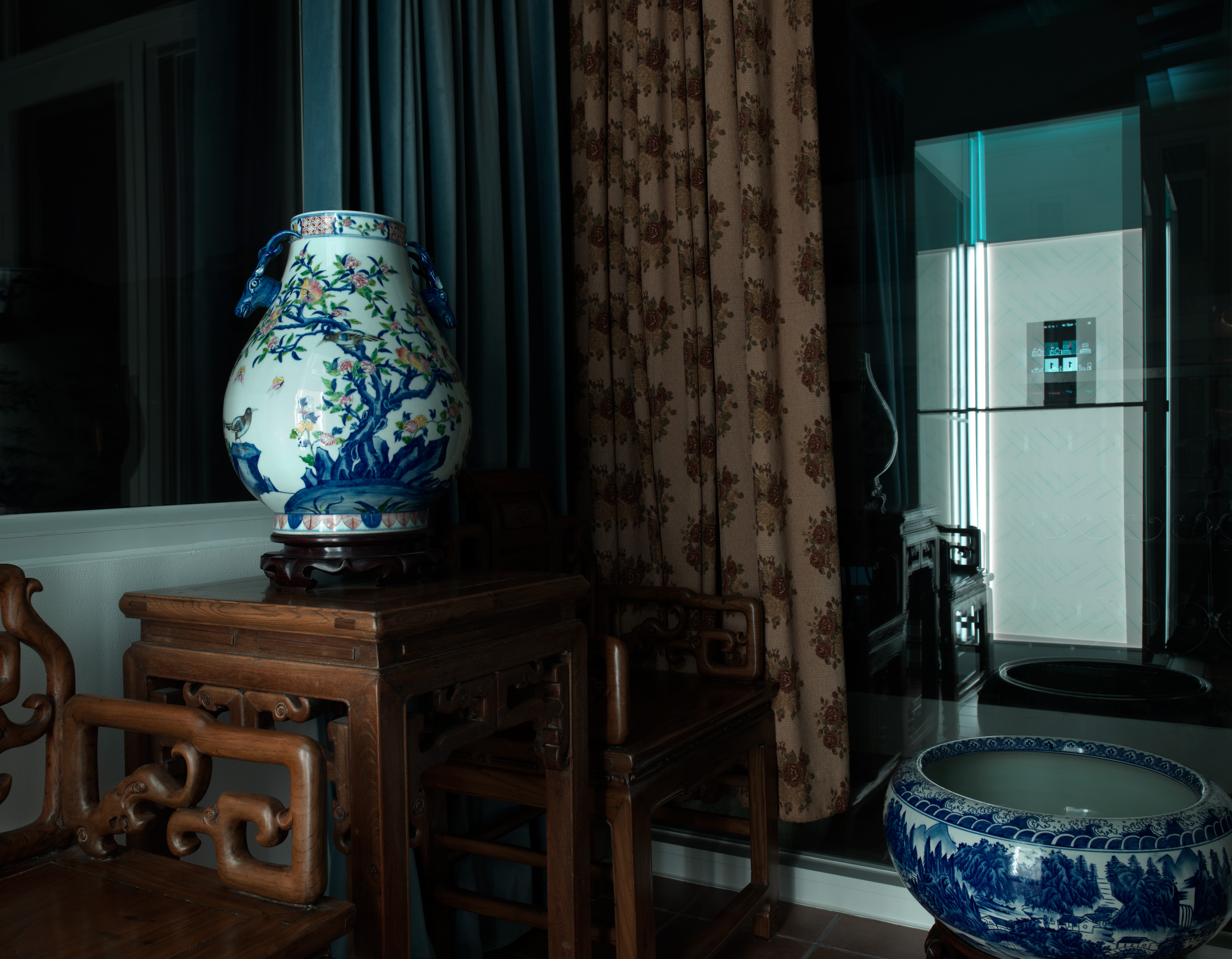

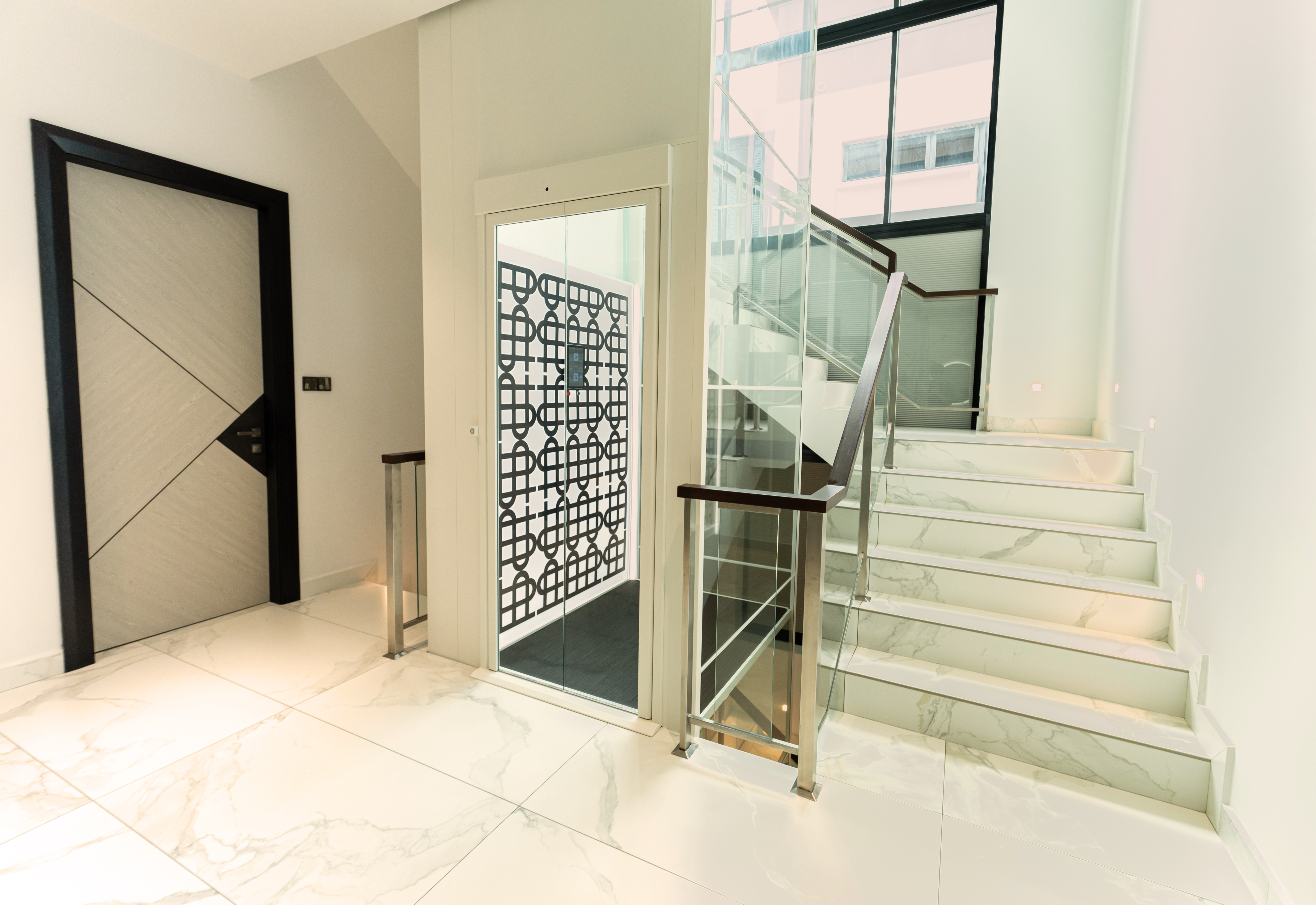

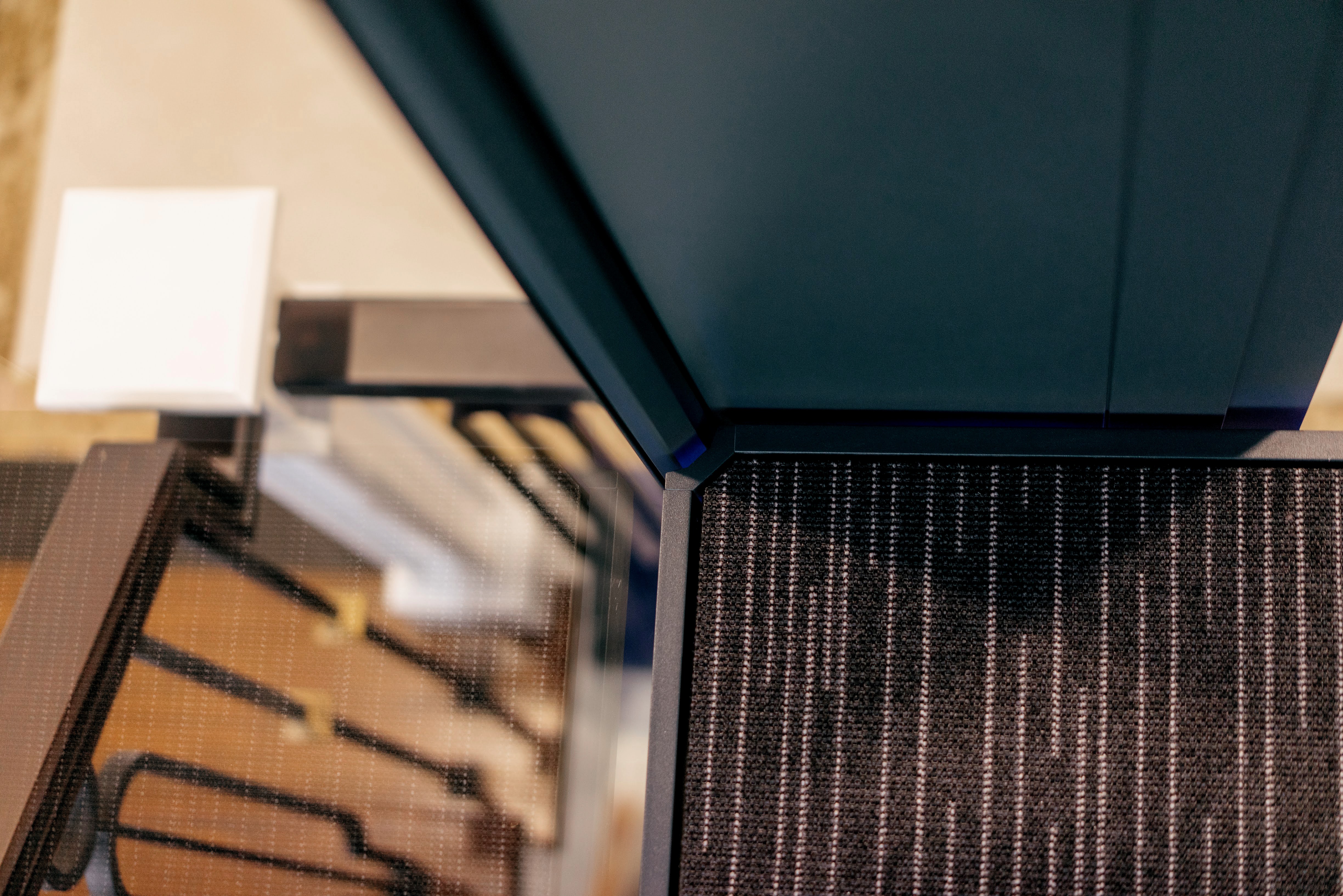

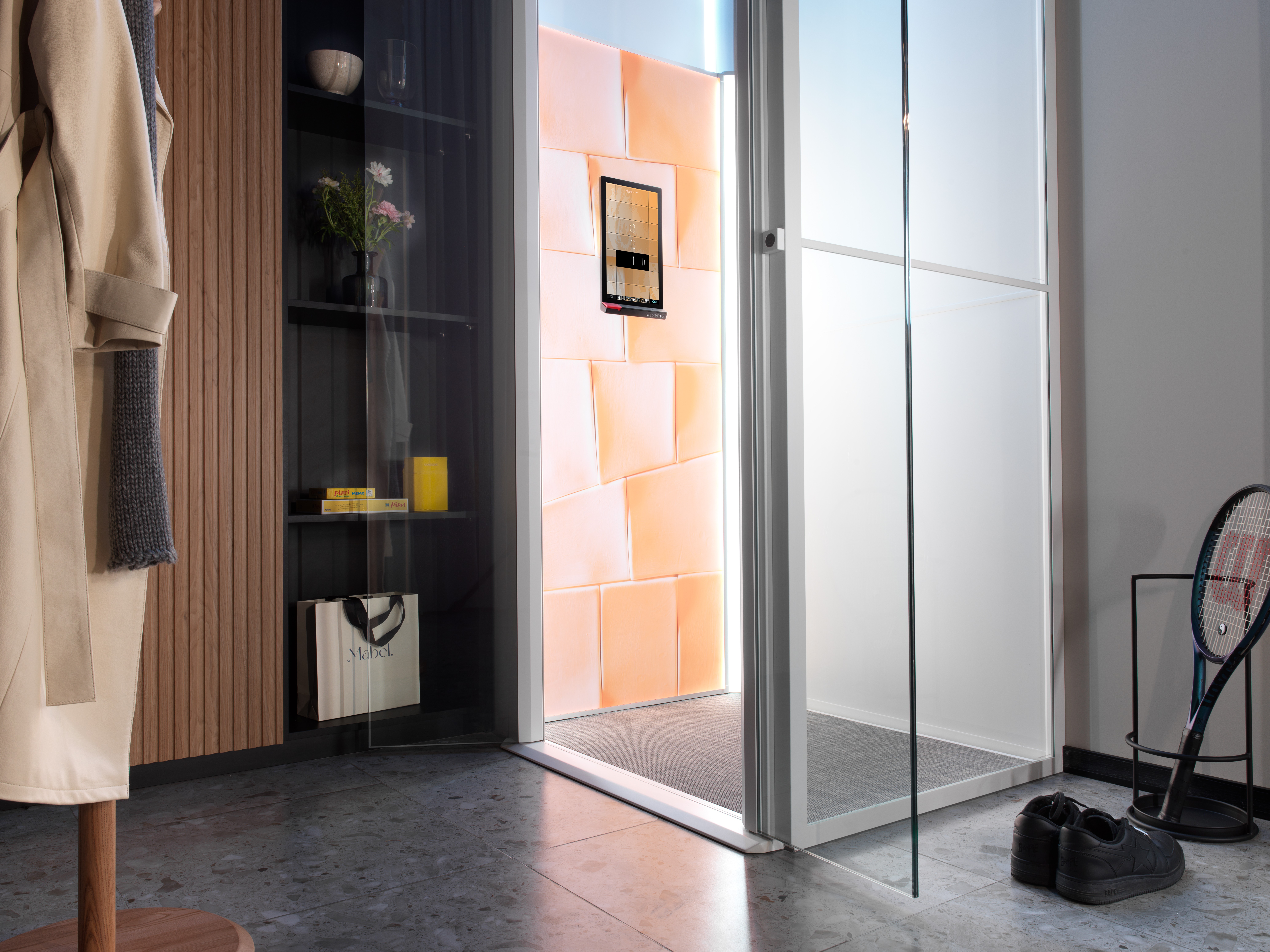

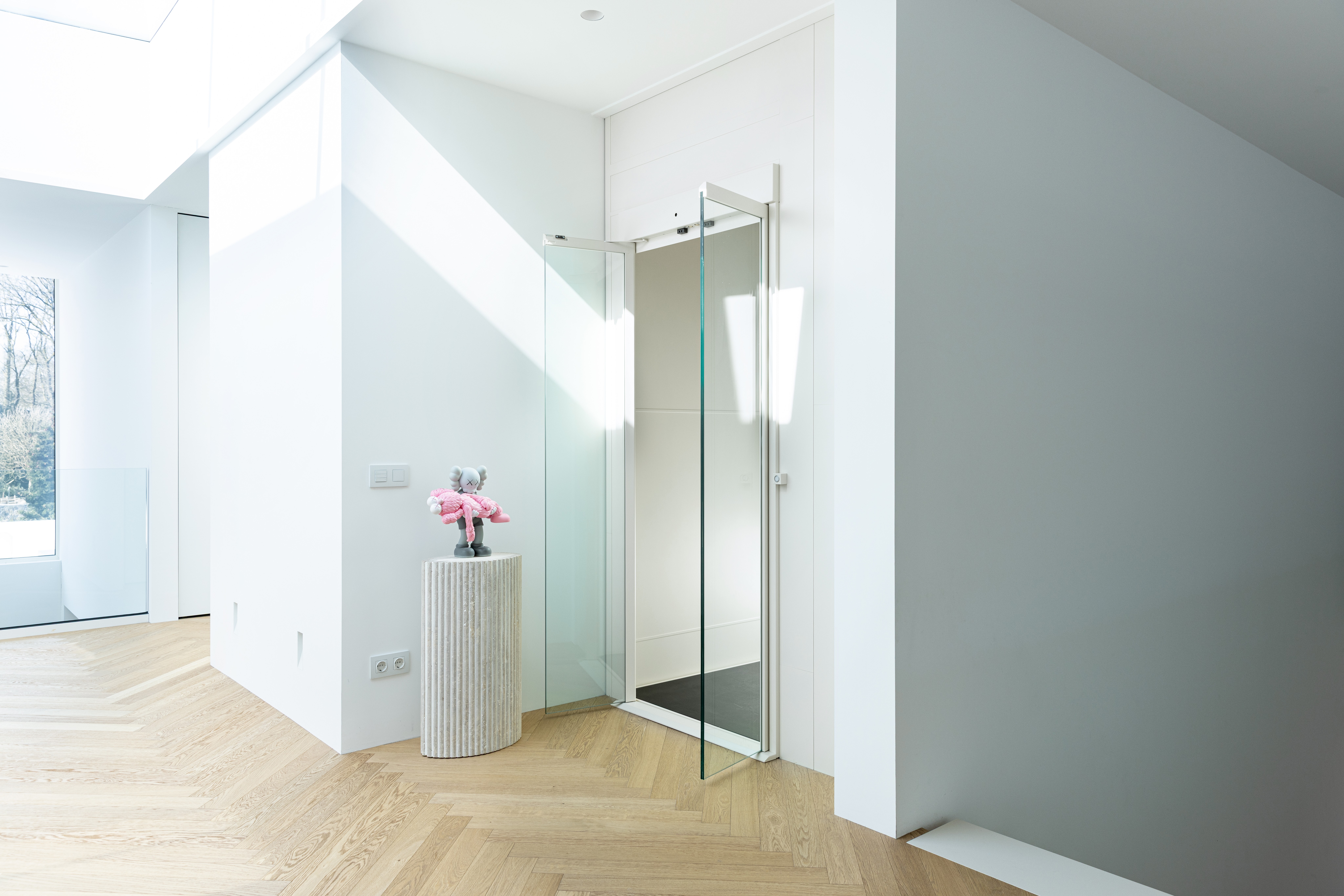

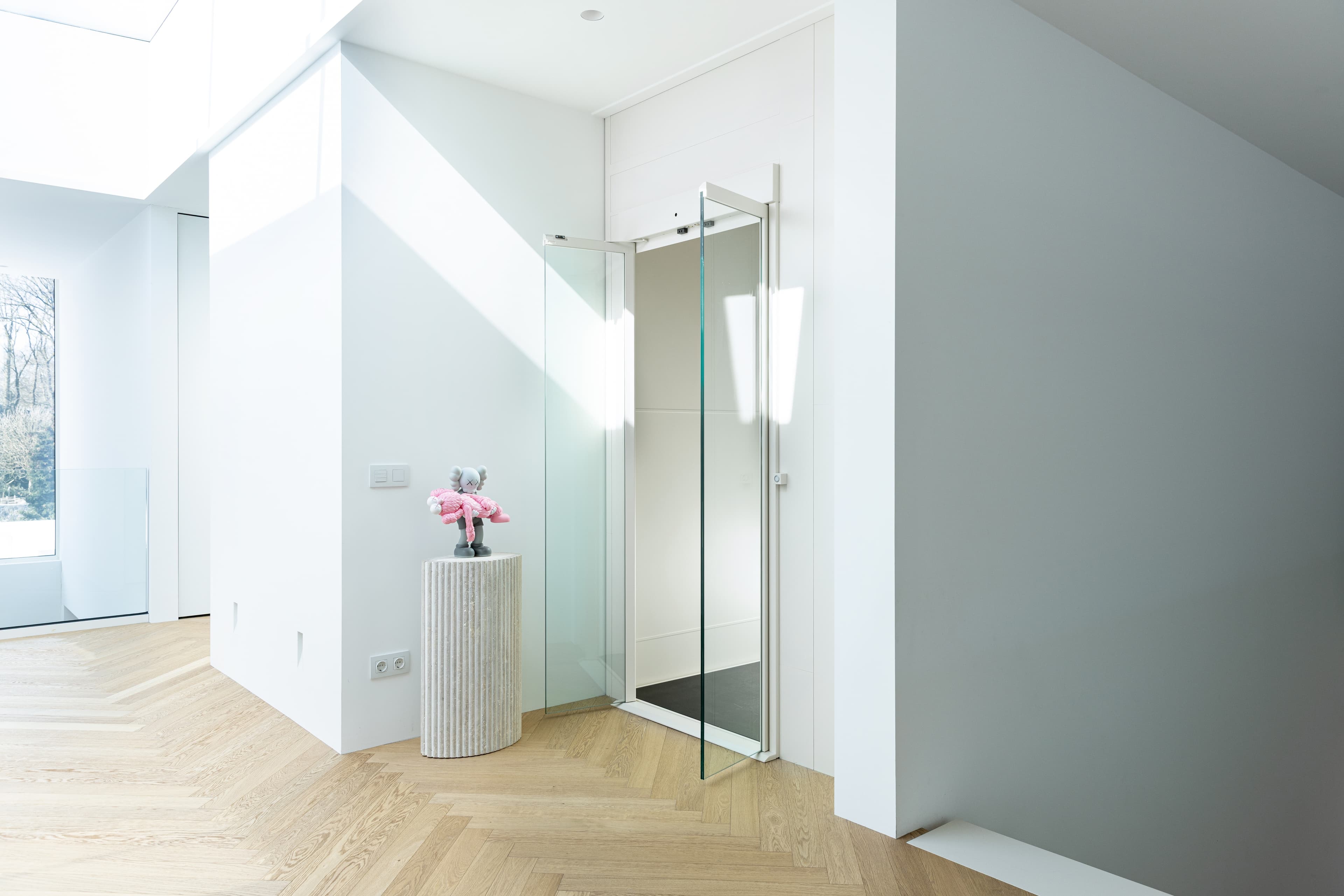

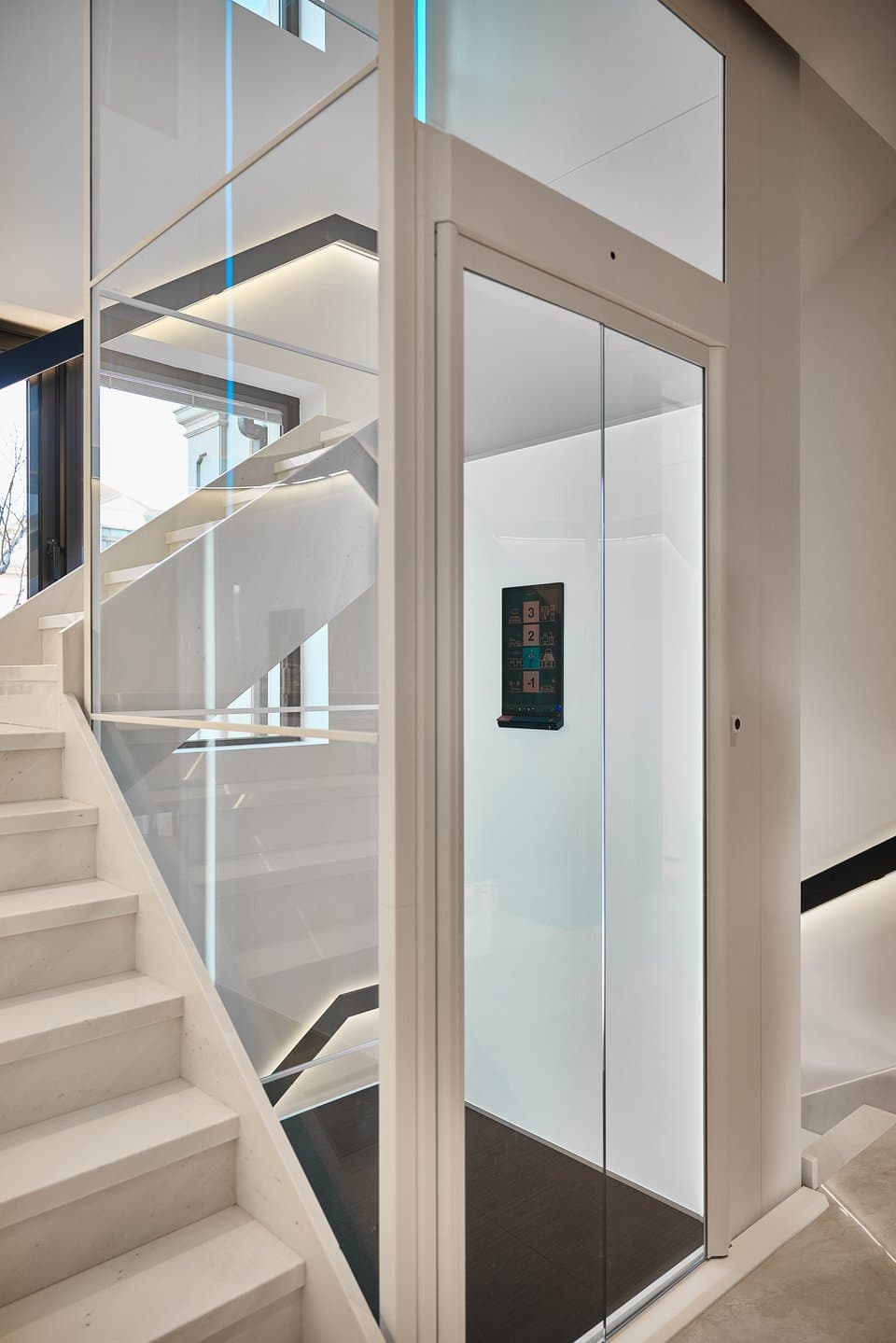

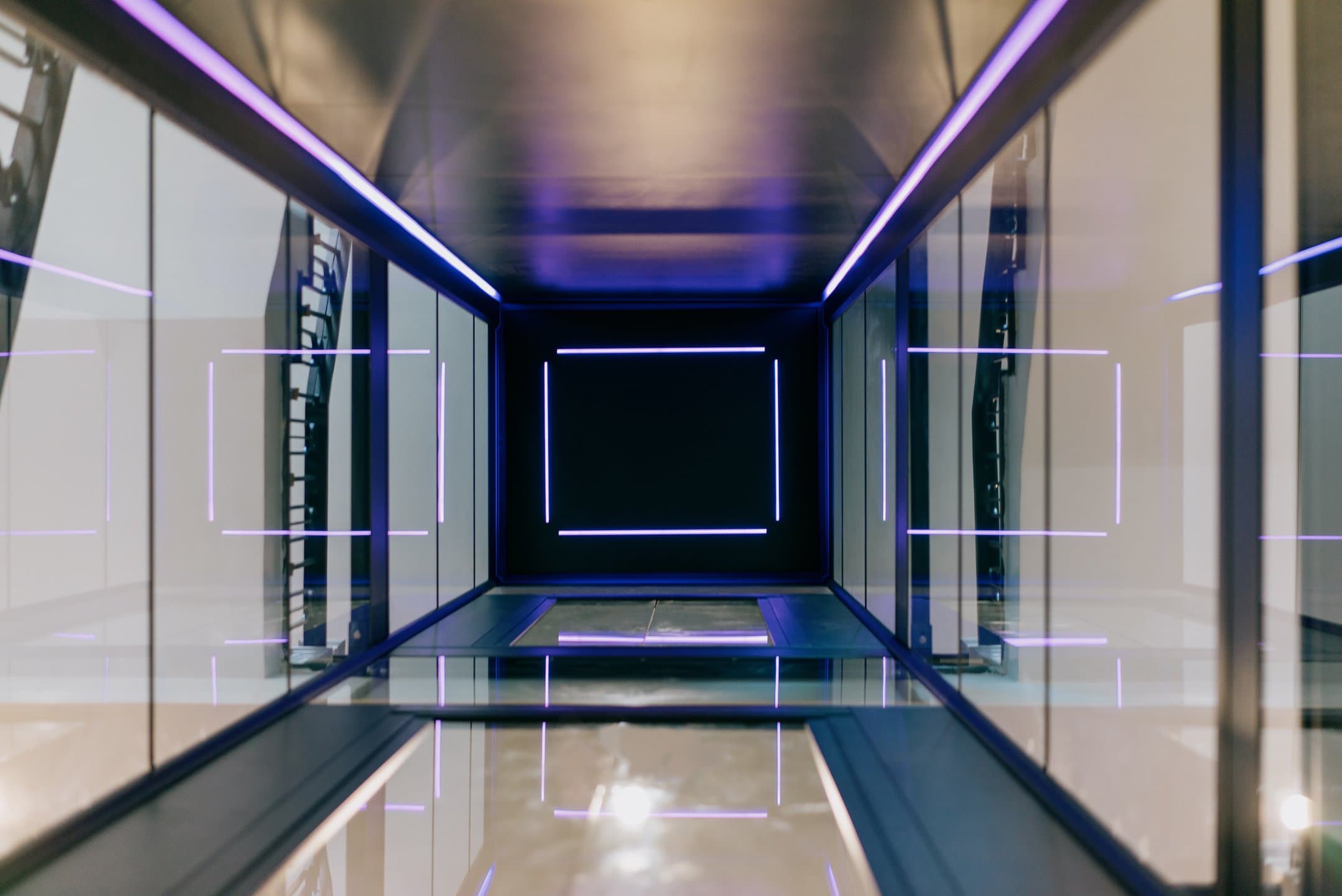

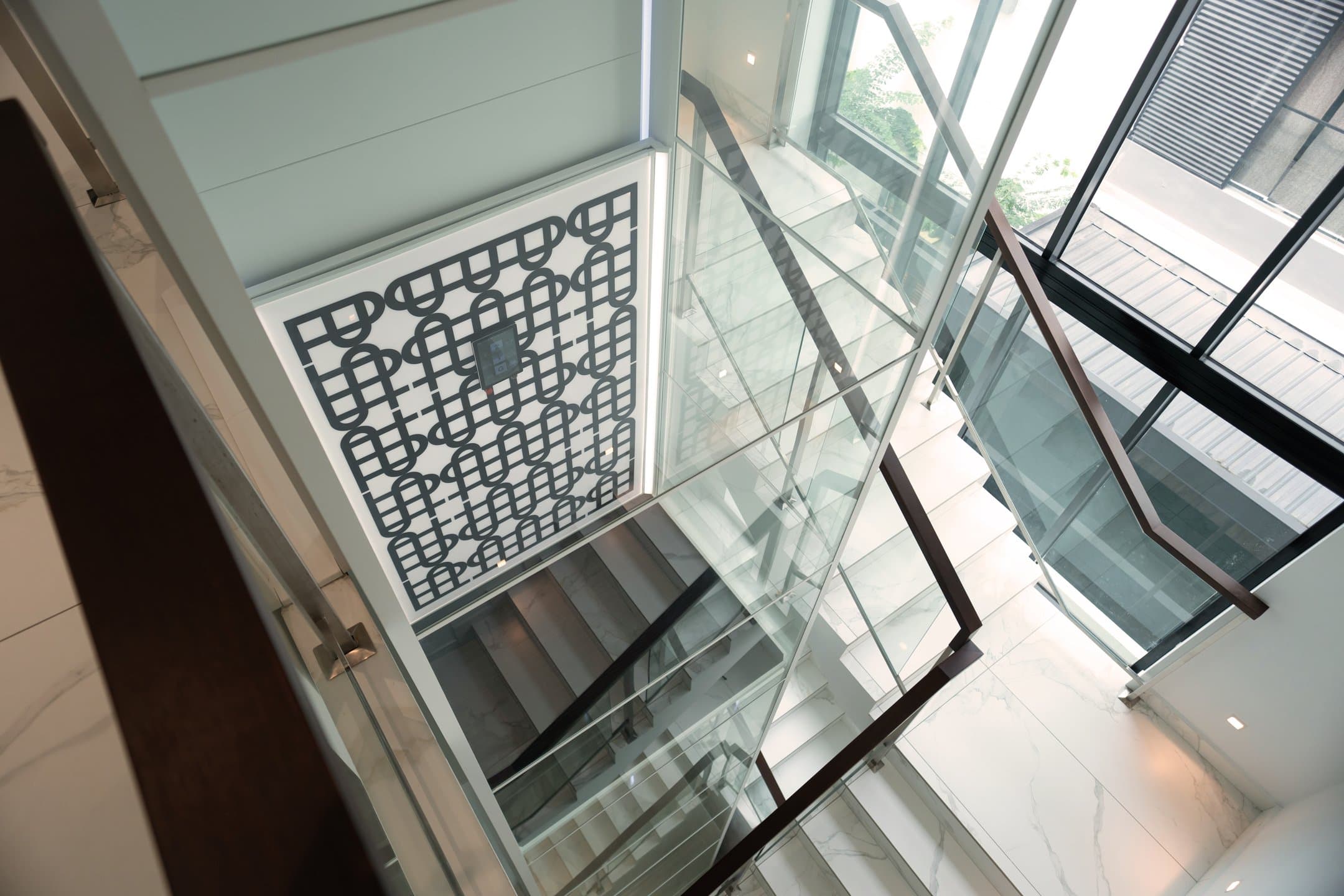

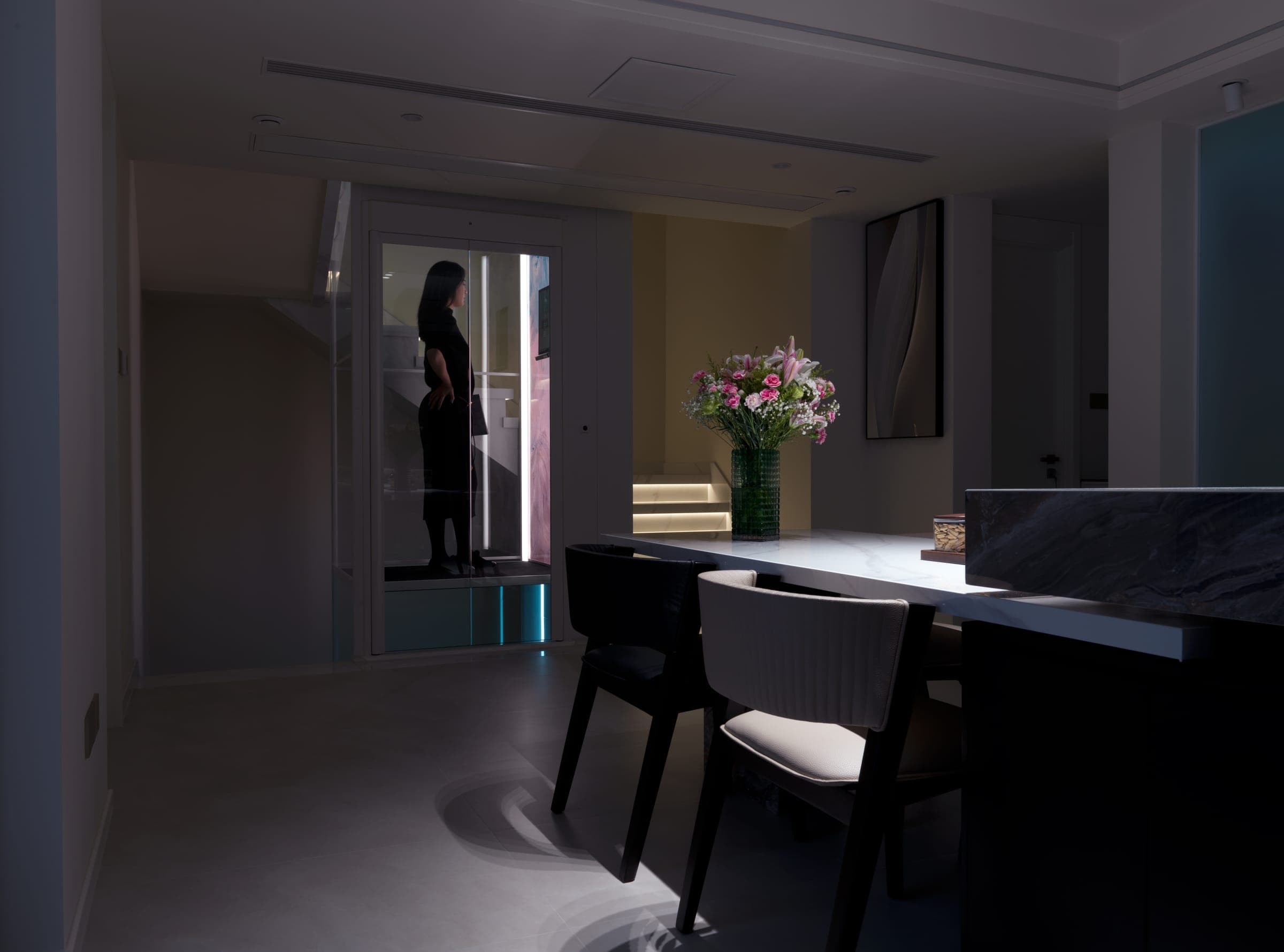

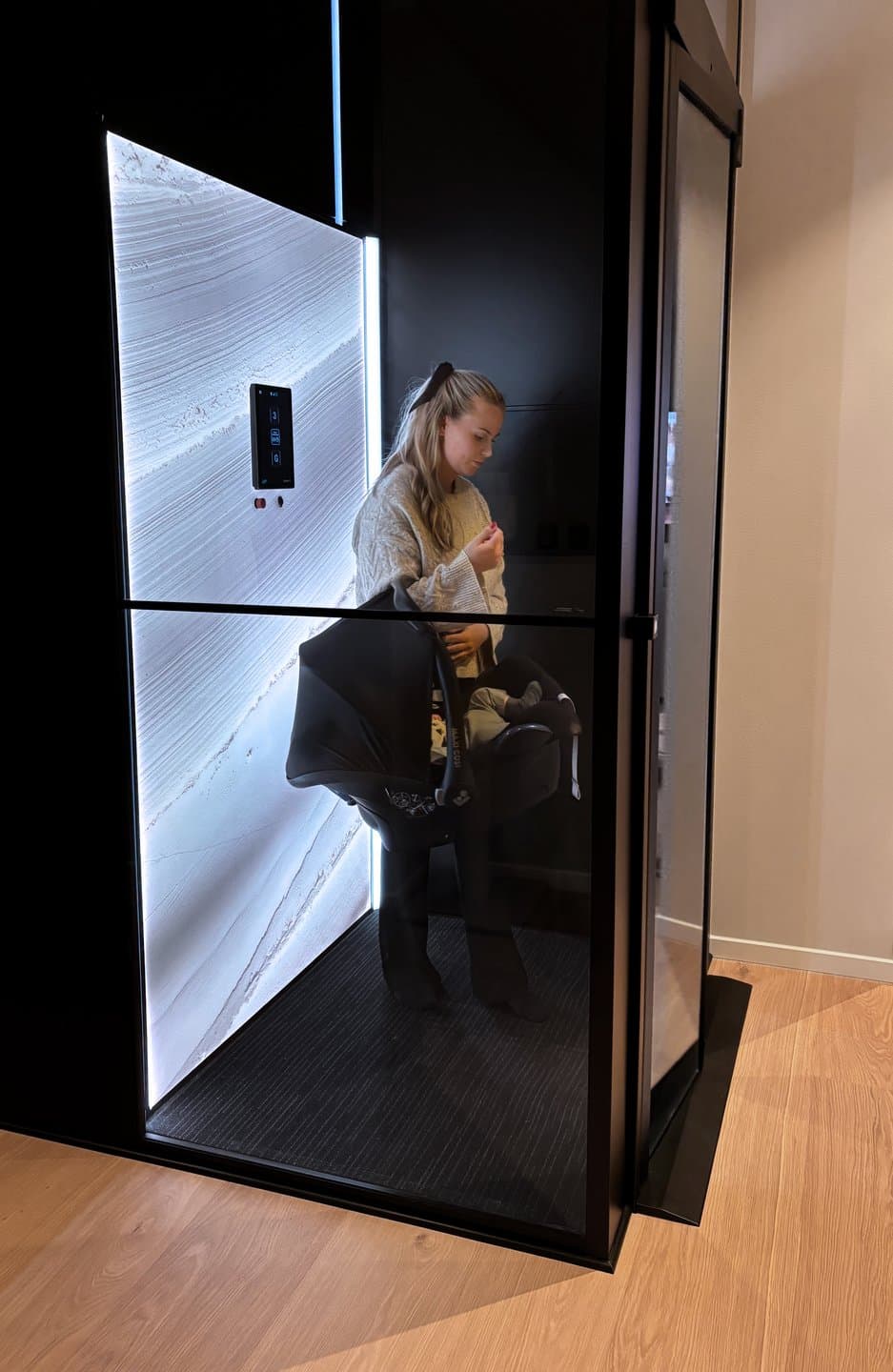

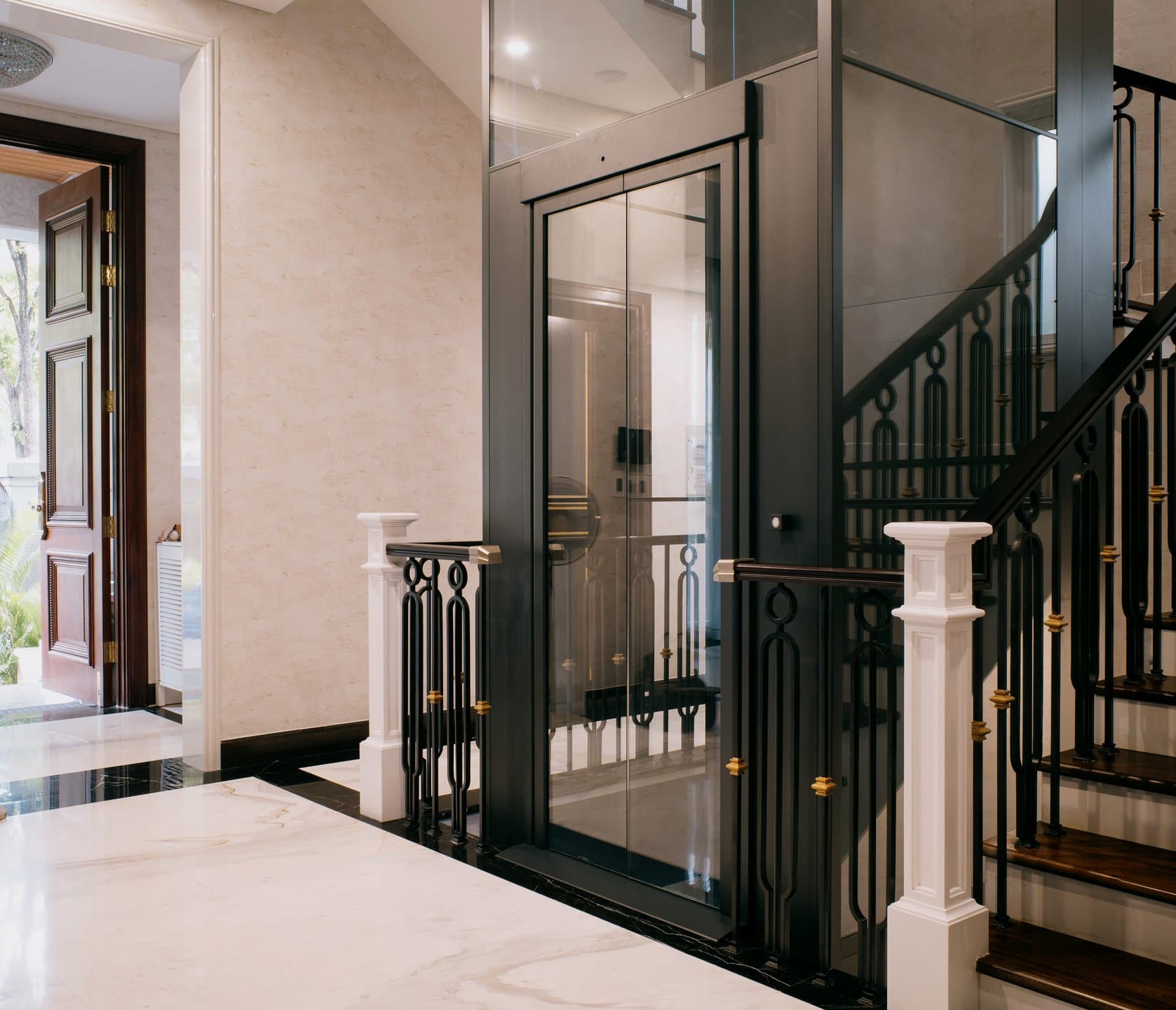

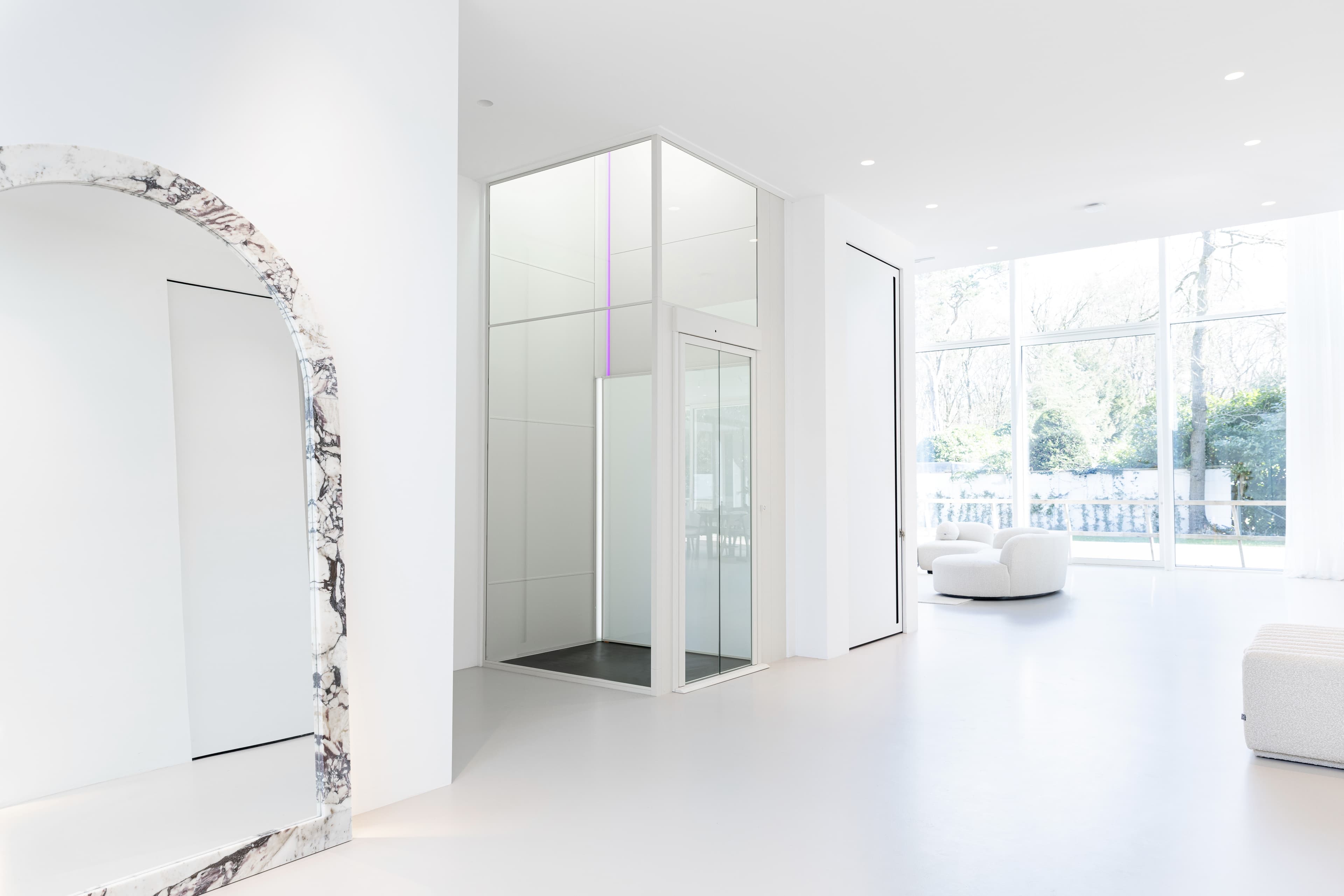

Swift Pro lifestyle gallery
Safety Features
Battery backup, so a blackout is not an event: The lift carries its own battery. A mains failure does not leave anyone standing in a stopped car, because it keeps running long enough to reach a floor and open the doors.
Two independent brakes: Braking is doubled up. If one system has a problem the other still holds the car, which is what lets the lift stop safely on a mechanical or a power fault.
A stop button inside the car: Whoever is in the lift can halt it immediately, rather than needing somebody outside to do it for them.
Soft start, soft stop: The car picks up speed and slows gently instead of jolting. It reads as a comfort feature, and it is, but it matters most when the person using the lift is unsteady on their feet.
Remote diagnostics: The lift supports remote service access, so its status can be checked without a site visit. That helps stop a small fault turning into a lift that is out of action.
Doors that check before the lift moves: Sensors watch the doorway for anything in the way and hold the lift still until it is clear. Worth having in a house with children or a dog.
Warranty and Maintenance
Five years on the lift and 10 years on the drive. A service every 12 months keeps it running as it should, and replacement parts are stocked in Australia, so a repair is not waiting on a shipment from the other side of the world.
Safe for the whole household
Door sensors hold the car until the doorway is clear, and two independent brakes mean a fault on one still leaves the car held. There is a stop button inside the car, and a child lock can put chosen floors out of reach.
Anti-Trap battery backup
The lift carries its own battery. If the mains drops out it keeps running at normal speed rather than stopping between floors, so nobody is sitting inside waiting to be let out.

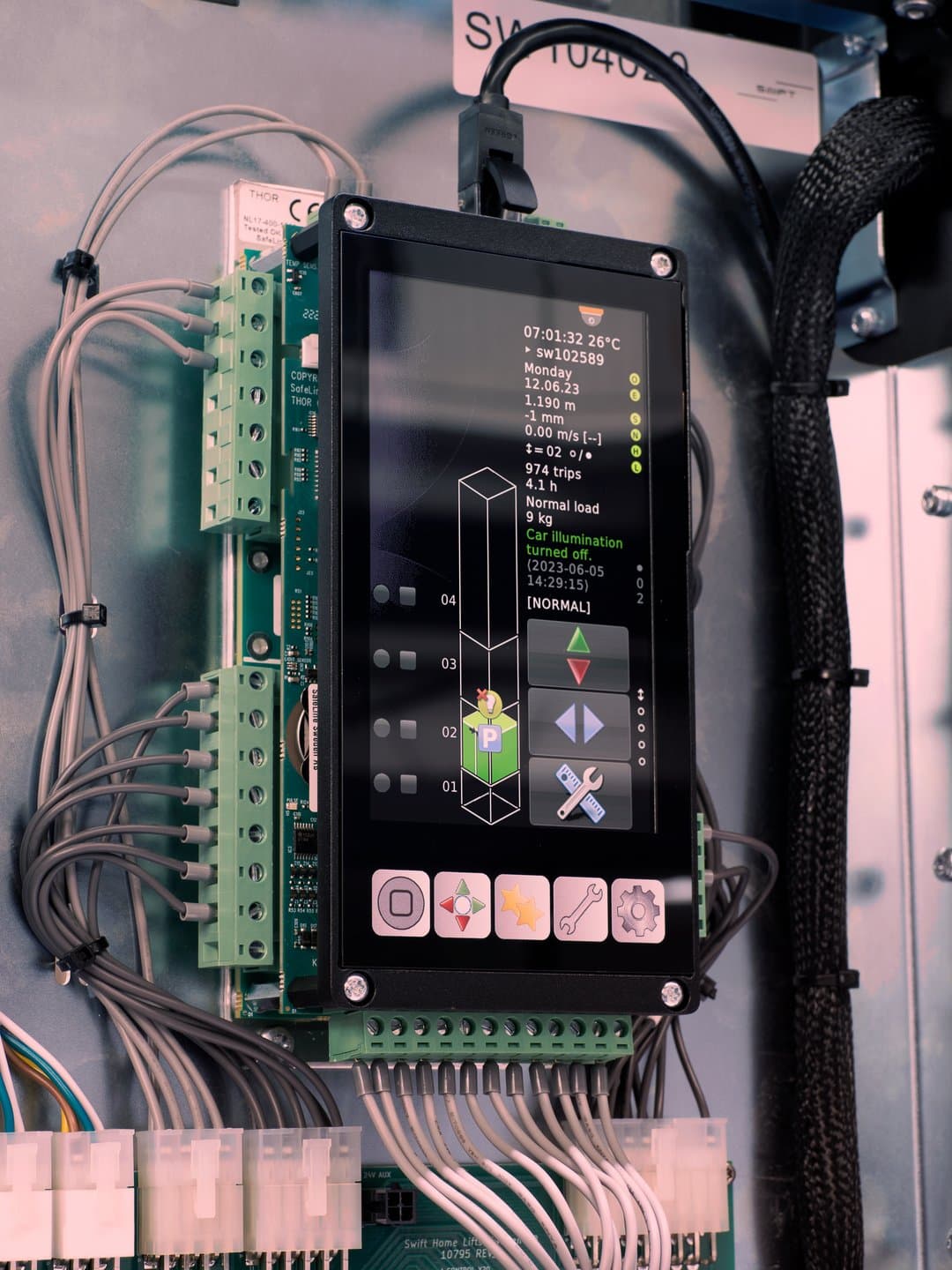

Thor control system
Thor Engineering's control system runs the lift, handling the landing calls, the door timing and the safety circuit. It is standard on every Swift Pro and Swift Lite.
Buying a Swift in Australia raises questions a European brochure does not answer. Read our Australian buyer's guide: the standard that applies here, the power supply, pit depth, lead time, price and who services it.
