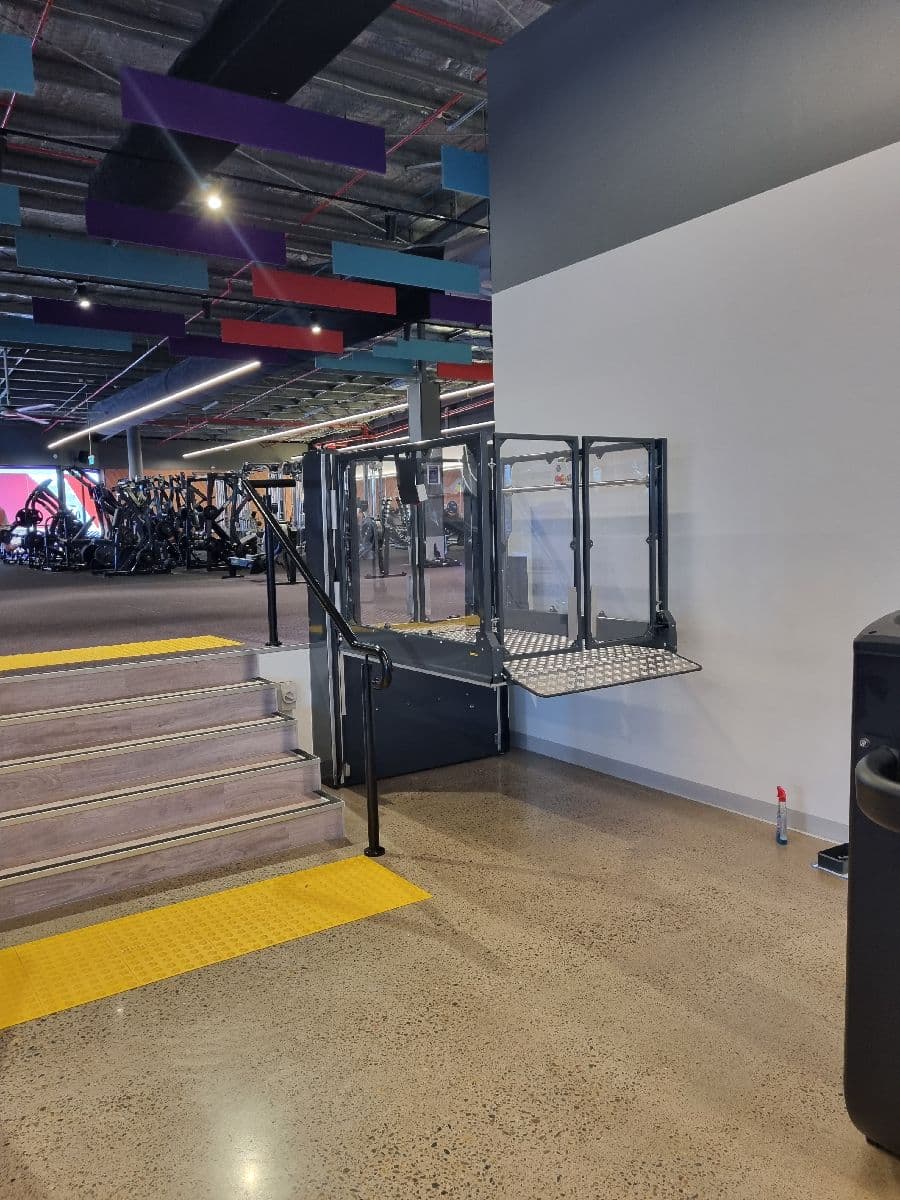

Discovery. DDA access without rebuilding the building.
If your business or commercial build isn't yet wheelchair accessible, the Discovery is a perfect, NCC compliant alternative to installing a long and expensive ramp. Designed to be installed against a landing or verandah externally, the Discovery is also suitable for internal installation to help negotiate split-level builds.
Overview
- Maximum Travel:
- 2m
- Weight Capacity:
- Up to 400kg
- Rated Speed:
- 0.08m/s
- Compliance:
- AS1735.15/EN 81-41, NCC & DDA requirements
- Control:
- Constant Pressure Operation
- Installation:
- Internal and External
- Power Supply:
- 230V Single Phase
- Door Configuration:
- Left or right swing, through car or adjacent entry
- Pit Depth:
- 50mm for flush entry, or ramp provided
Lead time and local support
Spare parts held in Australia.
We stock a wide range of spare parts in Brisbane, Sydney, Melbourne and South Australia, so a service call is not waiting on an order.
One team, from quote to service.
The people who quote your lift are the people who install it, and who look after it for the life of the lift.
Safety Features
The Discovery VPL is engineered in Sweden with an advanced, multi-layered safety suite designed to protect passengers in every situation. Key safety features include:
Manual Lowering: Allows the lift to be safely lowered to the nearest landing during a power loss or system fault.
In-Car Emergency Telephone: Provides direct communication from the lift car to request assistance when needed.
Safety Underpan: Stops the lift immediately if an obstruction is detected beneath the platform.
Emergency Backup Lowering System (Optional): Automatically lowers the lift to a safe level during a power outage.
Warranty and Maintenance
- 3-year conditional warranty covering both labour and parts.
- Servicing required every 6-12 months to maintain warranty and optimal performance.
- All replacement parts are stocked locally for fast turnaround and minimal downtime.
