Commercial Lifts

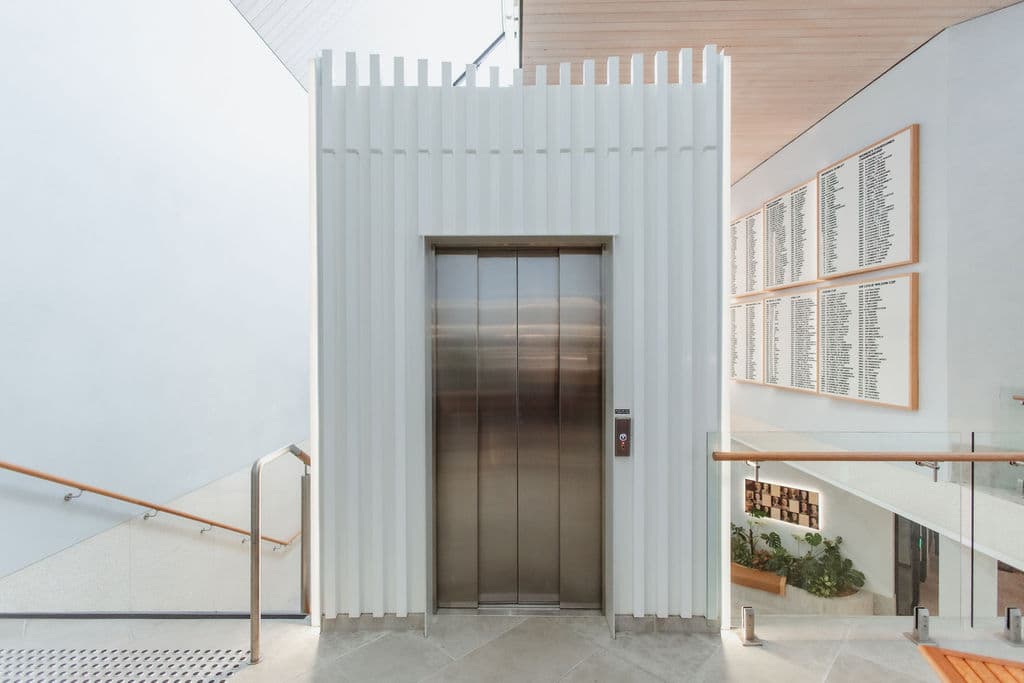

Orion. The commercial lift built in Brisbane for real programmes.
The Orion Lift is a robust and dependable accessibility solution designed to meet the demands of commercial environments. Engineered to Australian Standards, it delivers smooth hydraulic operation, automatic sliding doors, and a self-supporting shaft that eliminates the need for load-bearing walls or extensive building works. Featuring integrated safety systems, the Orion provides reliable, compliant, and user-friendly access for workplaces, public buildings, and a wide range of commercial settings.
- Maximum Travel:
- 8m
- Weight Capacity:
- Up to 630kg
- Rated Speed:
- Up to 0.3m/s
- Compliance:
- AS1735, NCC & DDA requirements
- Control:
- Fully Automatic Operation
- Installation:
- Internal and External
- Power Supply:
- 230V Single Phase (Optional 400V Three Phase)
- Door Configuration:
- Centre opening sliding doors, available with up to two doors per landing
- Pit Depth:
- 150mm
Lead time and local support
From 10 weeks, supplied and installed.
Quoted from your plans, built to your configuration, and installed by our own team.
Spare parts held in Australia.
We stock a wide range of spare parts in Brisbane, Sydney, Melbourne and South Australia, so a service call is not waiting on an order.
We can still make parts for a lift we built 25 years ago.
When a supplier moves on from a product, a failed component can leave a lift out of service while a replacement is chased, and in the worst case the control system has to be retrofitted. We build this lift, so we can make the part.
Site changes handled quickly.
If a travel measurement, a colour or a feature changes once work has started, we can turn the parts around rather than putting your installation on hold.
One team, from quote to service.
The people who quote your lift are the people who install it, and who look after it for the life of the lift.
Customised For Your Building
Orion has an extensive range of available finishes.
Colour Options
We have 100s of colour options available, including mirrors, LED lighting and much more. Ask our team or visit one of our showrooms to find out more.
Wall Panels
Premium moisture-resistant MDF panels from Laminex in an enormous range of colours and surface finishes such as matte or gloss.
Flooring
Premium carpet or laminate flooring options, or supplied without flooring to be finished on site by the builder and matched to the landing.
Doors
Manual or power operated glass panel swing doors with a white or black finish.
Control Panel
Pushbutton control panel available in white, silver or black.
Handrails
Available in either returned or shaft and post styles, finished as brushed stainless steel or powdercoated.
Safety Features
Strong Hydraulic Drive System: Uses dual oil-hydraulic, chain-over cylinders for smooth, stable, and reliable lifting — reducing jolt or sudden movements.
Emergency Telephone & Alarm: The lift is fitted with an in-car emergency phone and alarm to allow immediate communication if assistance is required.
Manual Lowering Valve: For added safety and peace of mind, the lift includes a manual lowering option to bring the car to a safe level if needed.
Automatic Sliding Doors as Standard: Sliding doors improve safety and accessibility — reducing trip hazards and making entry/exit easier.
Emergency Battery Backup Lowering & Lighting: In case of a power failure, the system includes an emergency backup lowering system so the lift can be safely lowered, plus backup lighting for visibility.
Warranty and Maintenance
- 10 Year structural warranty covering the strength and integrity of the lift structure.
- 3 Year Conditional Warranty covering both labour and parts.
- Servicing required every 6 months to maintain warranty and optimal performance.
- All replacement parts are stocked locally for fast turnaround and minimal downtime.
